TCS, C-TCS (Cornering Enhanced Traction Control System)
Electrical & Electronics System
Battery
Sealed, maintenance-free, 12V, 28-amp/hour, 405 cca
Alternator/Generator
58 A maximum output

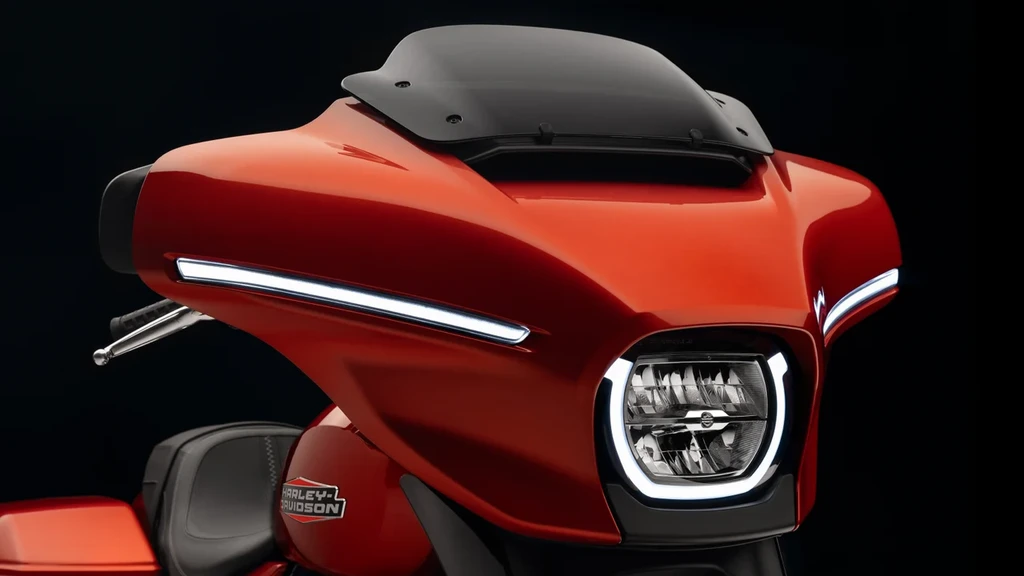

Headlight Type
LED
Taillight Type
LED
Instrumentation
12.3 Inch TFT Display (Digital gauges integrated within the display)
Connectivity
Bluetooth
Riding Modes
3 Modes – Road, Sport, Rain
Traction Control System
TCS, C-TCS
ABS
ABS, C-ABS
Chassis & Suspension
Frame Type
Steel tube w/ two-piece backbone
Front Suspension
SHOWA Dual Bending Valve
Front Suspension Travel
49 mm / 1.9 inches
Rear Suspension
Dual Outboard Emulsion with Preload Adjustability
Rear Suspension Travel
76.2 mm / 3 inches
Rake
26
Trail
170.18 mm / 6.7 inches
Rear Subframe
bolt-on
Wheels & Brakes
Wheels
Cast aluminum
Front Wheel/Rim Size
19 inches
Front Tire Size
130/60B19 M/C 61H
Rear Wheel/Rim Size
18 inches
Rear Tire Size
180/55B18 M/C 80H
Front Brakes
300 mm Disc, Dual axially mounted rotors, 32 mm 4-piston fixed caliper
Rear Brakes
300 mm Disc, Single fixed rear rotor, 32 mm 4-piston fixed caliper
ABS
ABS, C-ABS
Dimension & Weights
Overall Length
2410.4 mm / 94.9 inches
Seat Height
662.94 mm / 26.1 inches (laden weight with 81.6 kg / 180 lb operator)
Wheelbase
1625 mm / 64 inches
Ground Clearance
139.7 mm / 5.5 inches
Fuel Tank Capacity
22.7 L / 6 US gallons
Wet (kerb/curb) Weight
367.86 kg / 811 lbs
Infotainment
Infotainment System
Skyline™ OS
Screen Size
12.3 in
Type
Full Color TFT
Watts Per Channel
50
Speakers
2
Speaker Size
Two 5.25 in. fairing speakers
AM
Standard
FM
Standard
SD Card, Flash Drive, MP3 (USB)
Supported
Languages
Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese
Hands-free Mobile Phone (BT)
Standard
Voice Recognition (Phone Only)
Phone dependent
Voice Recognition (Tuner/Media/Navigation)
Embedded on Vehicle
Rider/Passenger Intercom
Standard (passenger headset sold separately), VOX available for HD headsets
Vehicle Information Screen
Standard (Air temperature, oil pressure, and EITMS)
Text-to-Speech (TTS) Languages
Same as Languages list
USB
USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage.
Phone Connectivity
Apple CarPlay (wireless or wired), Bluetooth (Phone/Media Player, Headset)
Rider Safety Enhancements
ABS (Anti Lock Braking System)
ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
ELB (Electronic Linked Braking)
This feature electronically applies braking effort to both wheels when the rider applies the front brake lever and, on some models when the rider applies the rear brake pedal. ELB can help many riders achieve better braking performance. It boosts braking power when needed while minimizing or stopping the linking for lighter braking or at lower speeds.
Traction Control System (TCS)
The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence.
Drag-Torque Slip Control System (DSCS)
DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
VHC (Vehicle Hold Control) – optional
With Vehicle Hold Control (VHC), your bike’s not rolling anywhere until you’re ready to go. Perfect for hill starts or ramps, VHC keeps the brakes locked after you let go, giving you a smooth, confident launch. Just give the brake lever or pedal a quick squeeze at a stop, and VHC has you covered until you’re ready to roll. Heads up: this isn’t a parking brake replacement, but it sure makes those uphill take-offs a breeze.
TPMS (Tire Pressure Monitoring System)
TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
C-ELB (Cornering Electronic Linked Braking)
C-ELB takes into account the motorcycle lean angle or Trike lateral acceleration. C-ELB will alter the proportioning of brake pressure between the front and rear brakes when braking while cornering in an attempt to improve the ability of the bike to maintain the rider’s intended path.
C-TCS (Cornering Enhanced Traction Control System)
C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
C-DSCS (Cornering Drag-Torque Slip Control System)
On bikes equipped with C-DSCS, the system helps keep the rear wheel from slipping or locking up when you quickly downshift or let off the throttle, especially on wet or slippery roads. When turning, it can adjust based on how much a two-wheel bike is leaning or the side-to-side motion on a Trike.

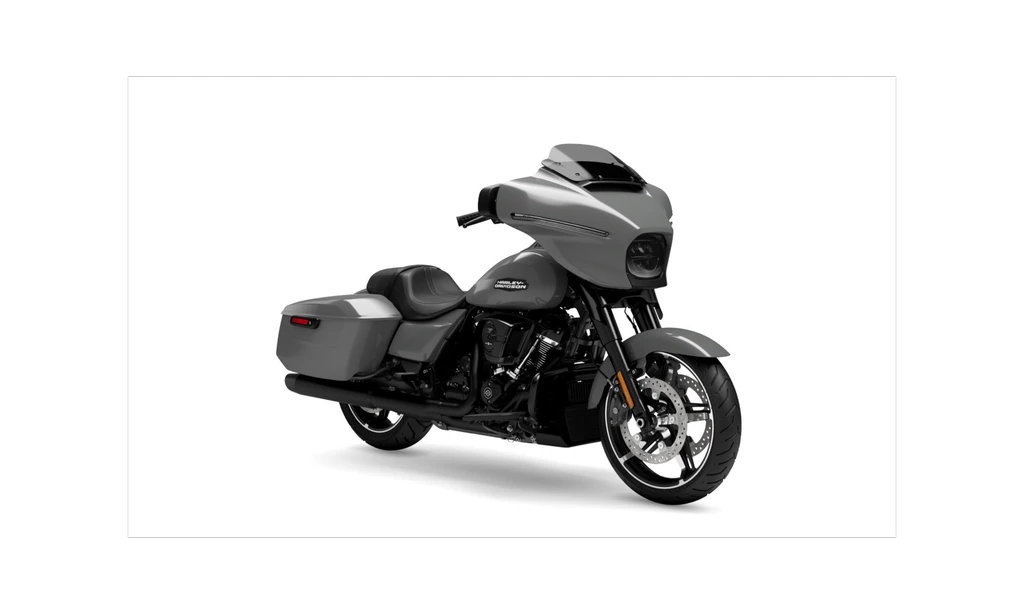

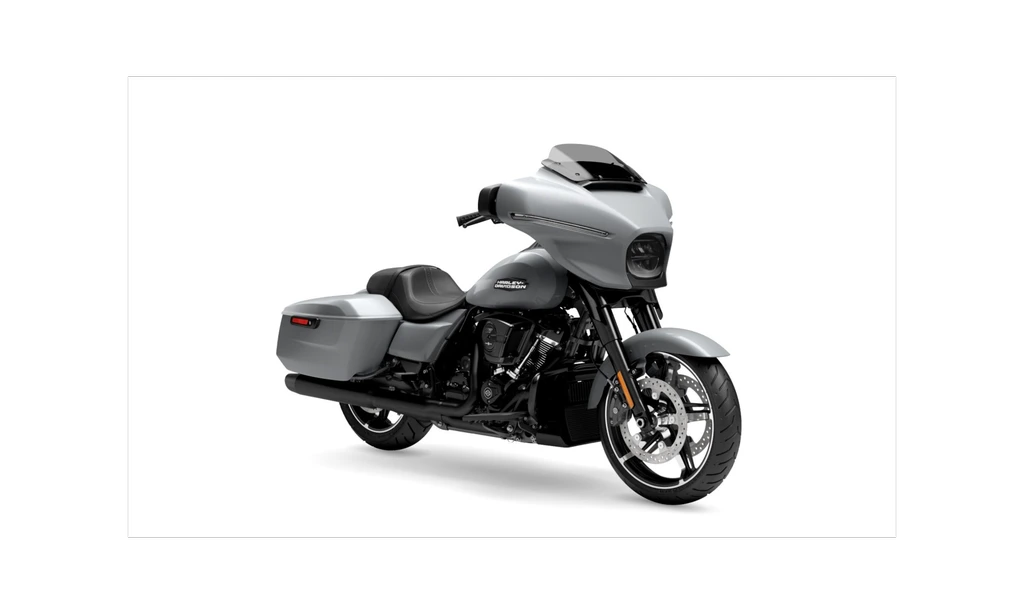

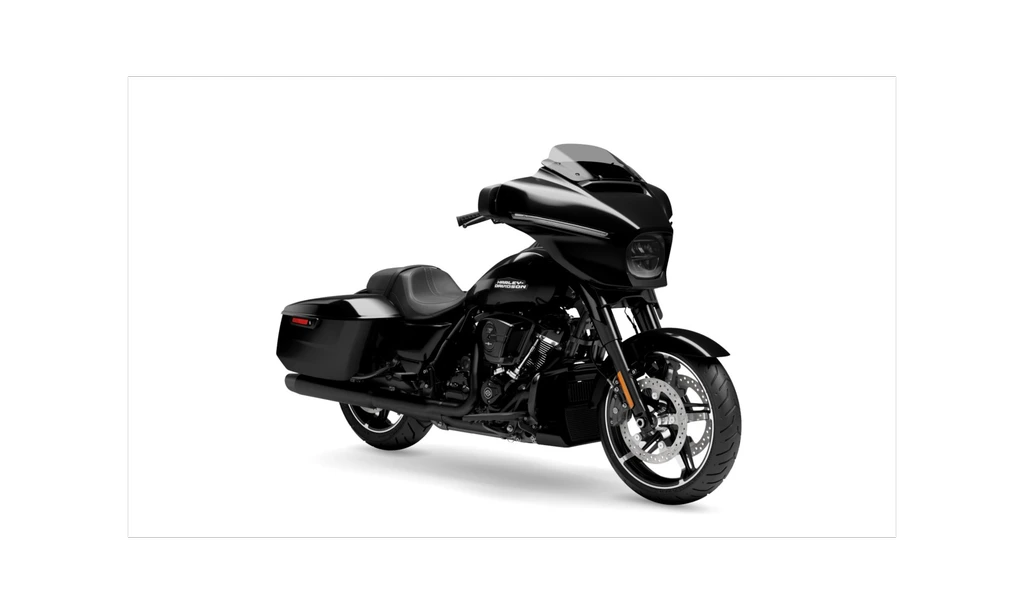

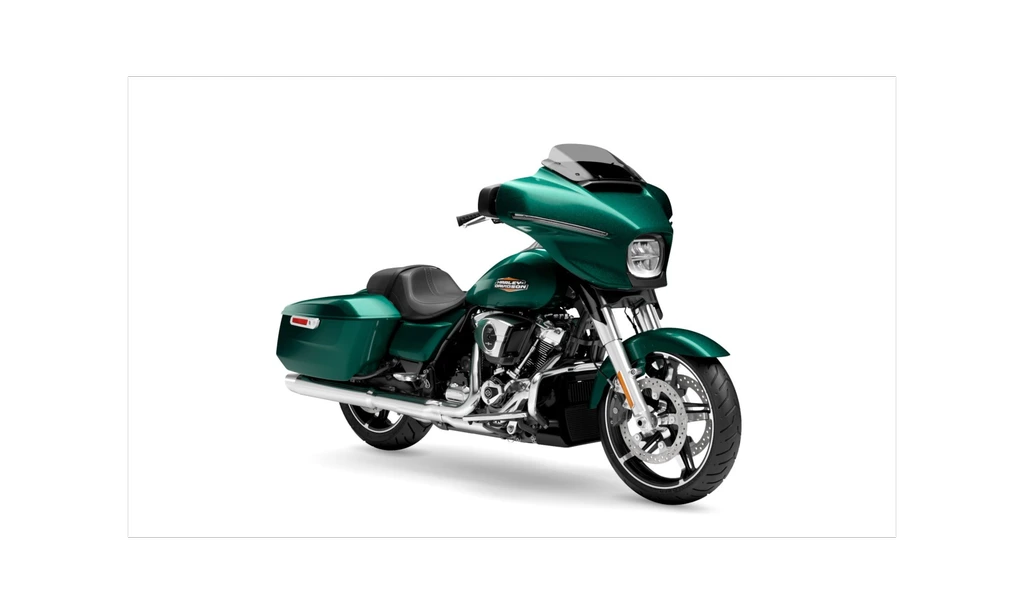

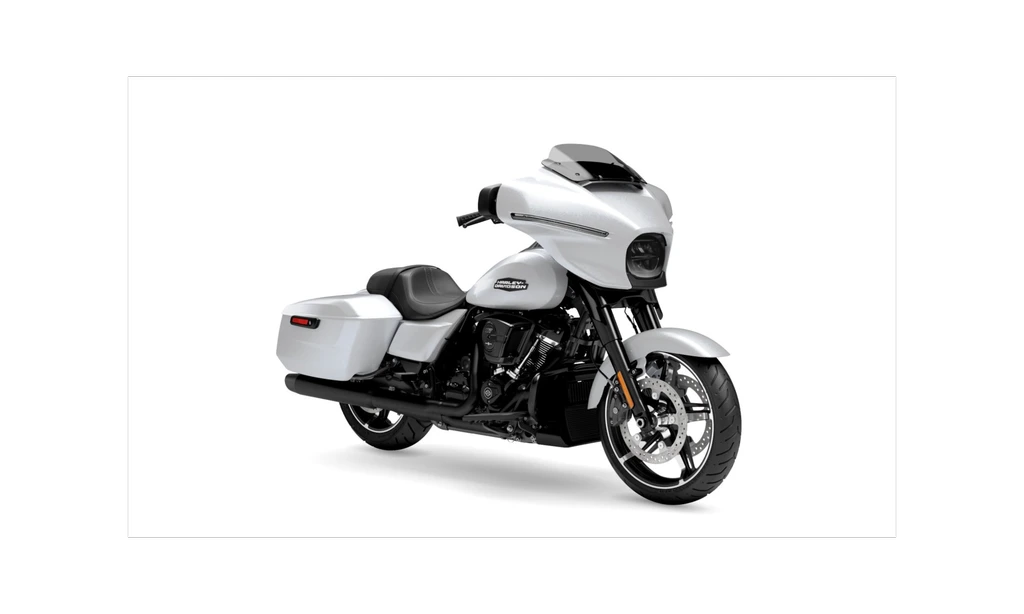

Harley Davidson Street Glide (2024) Color Options
Trim – Black, Chrome
Color –
Atlas Silver Metallic
Vivid Black
Billiard Gray
White Onyx Pearl
Whiskey Fire
Sharkskin Blue
Blue Burst
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
