Harley Davidson Street Bob (2024) Key Specifications Engine Type 2-cylinder, 4-stroke, V-twin (Milwaukee-Eight® 114) Engine Capacity 1868 cc / 114 cubic inches Max Power 94 HP / 70 kW @ 4750 rpm Max Torque 161.3 Nm / 119 ft-lb @ 3000 rpm Fuel Tank Capacity 13.2 L / 3.5 US gallons Weight (Wet/Kerb) 297 kg / 655 lbs Seat Height 655.3 mm / 25.8 inches (laden weight with 81.6 kg / 180 lb operator)
*n/a – information not provided by manufacturer
All Specifications Make & Model Model Harley Davidson Street Bob Year 2024
Engine Engine Type 2-cylinder, 4-stroke, V-twin (Milwaukee-Eight® 114) Displacement 1868 cc / 114 cubic inches Bore x Stroke 102 mm x 114.3 mm Compression Ratio 10.5 : 1 Number of Cylinders 2 Max Horsepower 94 HP / 70 kW @ 4750 rpm Max Torque 161.3 Nm / 119 ft-lb @ 3000 rpm Valve Train Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters Valves per Cylinder 4 Fuel-mixture System Electronic Sequential Port Fuel Injection (ESPFI) Lubrication System Pressurized, dry-sump with oil cooler Ignition System Electronic ignition Fuel Premium unleaded Exhaust System 2-into-2 offset shotgun; catalyst in muffler
Performance Acceleration (0-100 km/h, 0-60 mph) n/a Fuel Consumption 47 mpg / 20 kmpl Range ~ 164.5 miles / 264 kms
*n/a – information not provided by manufacturer
Transmission Clutch Mechanical, 10 plate wet, assist & conventional Gearbox 6-Speed Cruise Drive® Primary Drive Ratio 34:46 Gear Ratios 1st gear – 9.311 Final Drive Belt Traction Control System TCS, C-TCS (Cornering Enhanced Traction Control System)
Electrical & Electronics System Battery Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F Alternator/Generator Three-phase, 42 Amp system (390 Watts @13 Volts, 1000 rpm, 546 Watts max power @ 13 Volts, 2000 rpm) Starter 1.6 kW electric with solenoid shift starter motor engagement Headlight Type All LED, Low Beam, High Beam & Signature Position Lamp Taillight Type Bullet-style, dual-element incandescent Instrumentation 2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication ABS ABS (optional)
Chassis & Suspension Frame Type Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports Front Suspension Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers Front Suspension Travel 5 inches / 127 mm Rear Suspension Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment Rear Suspension Travel 3.4 inches / 86 mm Rake 30 Trail 157.4 mm / 6.2 inches Swingarm Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer
Wheels & Brakes Wheels Black Cast Annihilator 6 Spoke Wheels Front Wheel/Rim Size 2.5 x 19 inches Front Tire Size 100/90B19,57H,BW Rear Wheel/Rim Size 3 x 16 inches Rear Tire Size 150/80B16,77H,BW Front Brakes 300 mm Disc, 4-piston fixed front Rear Brakes 292 mm Disc, 2-piston floating rear ABS ABS, C-ABS
Dimension & Weights Overall Length 2319 mm / 91.3 inches Overall Width 865 mm / 34.1 inches Overall Height 1160.7 mm / 45.7 inches Seat Height 655.3 mm / 25.8 inches (laden weight with 81.6 kg / 180 lb operator) Wheelbase 1630.6 mm / 64.2 inches Ground Clearance 124.4 mm / 4.9 inches Fuel Tank Capacity 13.2 L / 3.5 US gallons Wet (kerb/curb) Weight 297 kg / 655 lbs

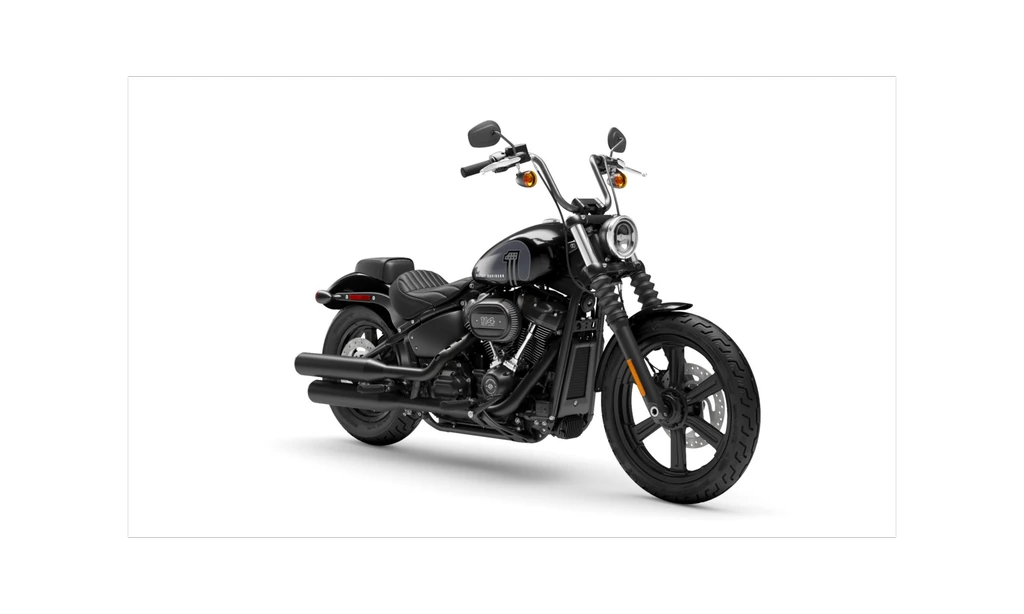

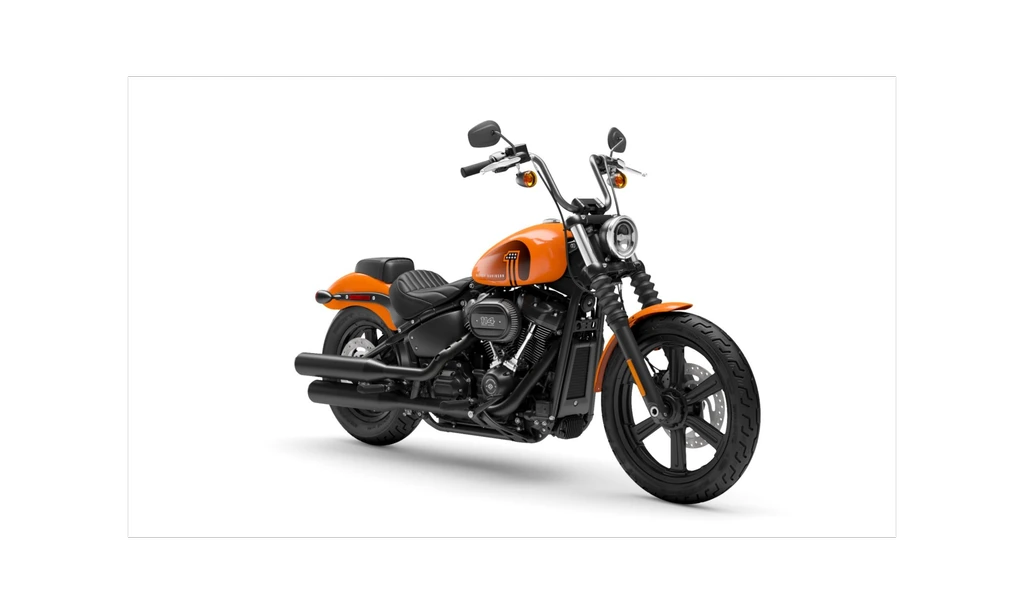

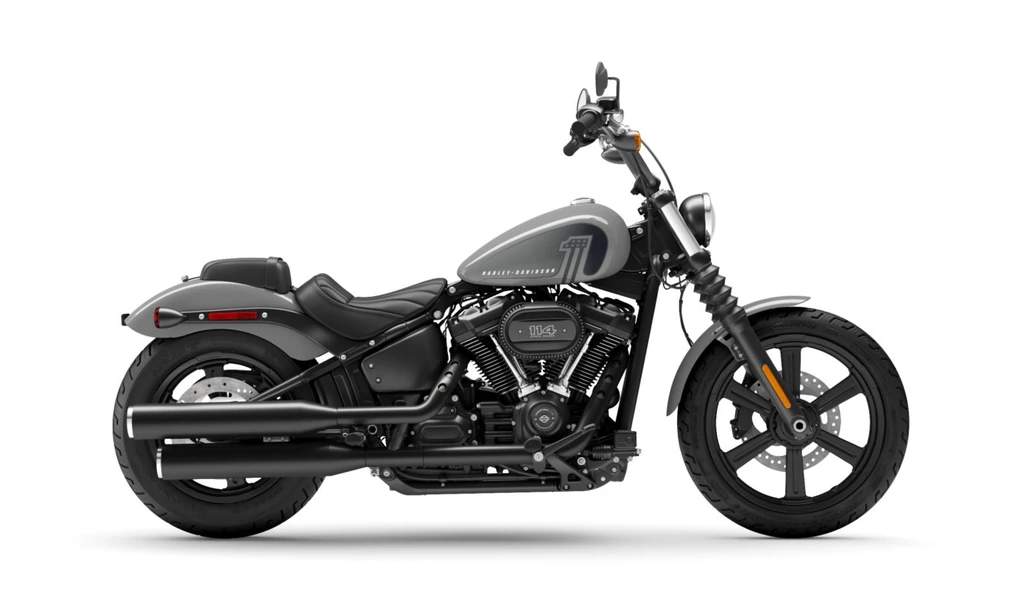

Rider Safety Enhancements Anti Lock Braking System (ABS) – OptionalABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation. Harley Davidson Street Bob (2024) Color Options Trim – Black Color –Billiard Gray Vivid Black Baja Orange Blue Burst *We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
