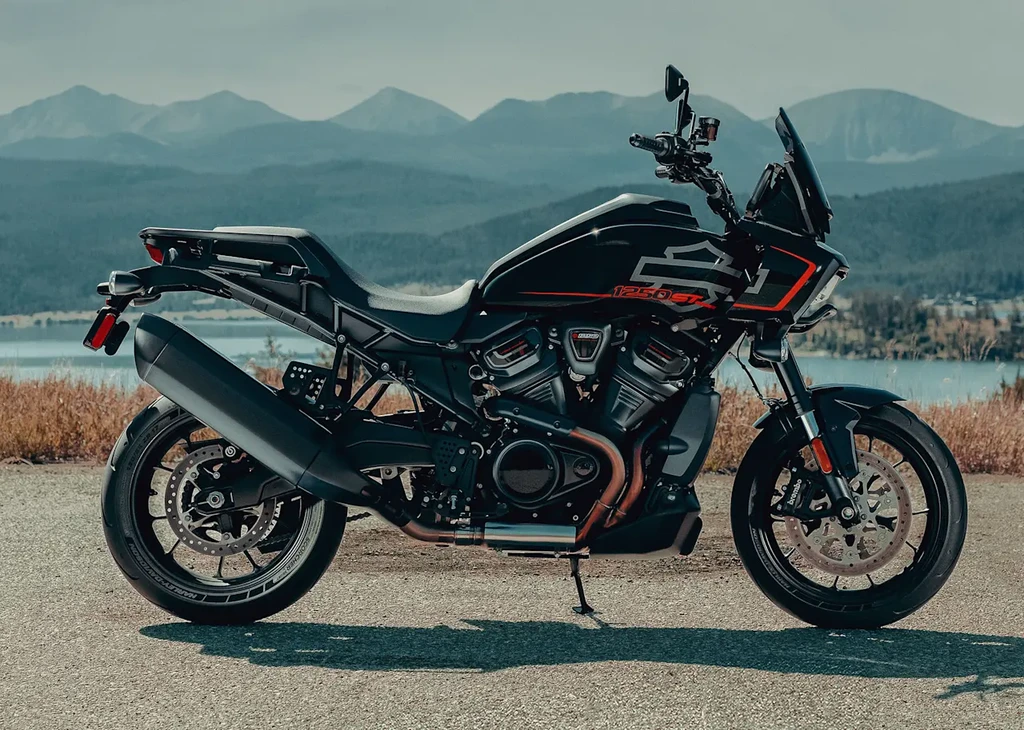

Building on the proven performance of the Pan America platform, the 2025 Pan America 1250 ST is reimagined for faster, more comfortable, and capable pavement performance, with lowered suspension, quick-shifting, 17-inch wheels high-performance tires, and a slimmer, lighter profile.
Enhanced and refined for on-road use—lowered, tuned, and now with 17-inch wheels for incredible handling and high-performance tires. The Pan America 1250 ST is still purpose built, just for a different purpose.
Key Specifications
| Engine Type | 2-cylinder, 4-stroke, V-twin (Revolution® Max 1250) |
| Engine Capacity | 1252 cc / 76.4 cubic inches |
| Max Power | 150 HP / 112 kW @ 8750 rpm |
| Max Torque | 127.4 Nm / 94 ft-lb @ 6750 rpm |
| Fuel Tank Capacity | 21.2 L / 5.6 US gallons |
| Weight (Wet/Kerb) | 245.8 kg / 542 lbs |
| Seat Height | 772.16 mm / 30.4 inches 746.76 mm / 29.4 inches – with Adaptive Ride Height (lowers seat height at stops and raises at speed) (laden weight with 81.6 kg / 180 lb operator) |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | Harley Davidson Pan America 1250 ST |
| Year | 2025 |
Engine
| Engine Type | 2-cylinder, 4-stroke, V-twin (Revolution® Max 1250) |
| Displacement | 1252 cc / 76.4 cubic inches |
| Bore x Stroke | 105 mm x 72.28 mm 4.134 inches x 2.846 inches |
| Compression Ratio | 13 : 1 |
| Number of Cylinders | 2 |
| Max Horsepower | 150 HP / 112 kW @ 8750 rpm |
| Max Torque | 128.8 Nm / 95 ft-lb @ 6750 rpm |
| Valve Train | Chain-driven, DOHC, hydraulic self-adjusting lifters, intake & exhaust VVT; |
| Valves per Cylinder | 4 |
| Fuel-mixture System | Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication System | Semi-Dry Sump |
| Cooling System | Liquid Cooled |
| Ignition System | Electronic ignition |
| Fuel | Premium unleaded |
| Exhaust System | 2-into-1-into-1; catalyst in header |
Performance
| Acceleration (0-100 km/h, 0-60 mph) | n/a |
| Fuel Consumption | 46 mpg / 19.55 kmpl |
| Range | ~ 257.6 miles / 414.5 kms |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Mechanical, 8 plate wet, assist & slip, 1090N |
| Gearbox | 6-Speed |
| Primary Drive Ratio | 49:89 |
| Gear Ratios | 1st gear – 13.11 2nd gear – 9.687 3rd gear – 7.509 4th gear – 6.057 5th gear – 5.08 6th gear – 4.436 |
| Final Drive | Chain |
| Quick Shifter | Yes – Up & Down |
| Traction Control System | TCS, C-TCS |
Electrical & Electronics System
| Battery | Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F |
| Alternator/Generator | Three-phase, 45 Amp system (390 Watts @13 Volts, 1300 rpm, 585 Watts max power @ 13 Volts, 2500 rpm) |
| Starter | 0.9 kW electric with direct drive starter motor engagement |
| Headlight Type | Daymaker® Adaptive LED Headlamp |
| Taillight Type | LED |
| Instrumentation | 6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY) |
| Traction Control System | TCS, C-TCS |
| ABS | ABS, C-ABS |
Chassis & Suspension
| Frame Type | Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports |
| Front Suspension | SHOWA Balance Free 47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps |
| Front Suspension Travel | 6.75 inches / 171.45 mm |
| Rear Suspension | SHOWA Balance Free Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping |
| Rear Suspension Travel | 6.75 inches / 171.45 mm |
| Rake | 25 |
| Trail | 94 mm / 3.7 inches |
| Swingarm | One-piece cast aluminum |
Wheels & Brakes
| Wheels | Aluminum cast, satin black |
| Front Wheel/Rim Size | 17 inches |
| Front Tire Size | 120/70ZR17 58W |
| Rear Wheel/Rim Size | 17 inches |
| Rear Tire Size | 180/55ZR17 73W |
| Front Brakes | 2 BREMBO 320 mm Discs, dual rotor, floating, tower- mounted, radially mounted, monoblock, 4-piston caliper |
| Rear Brakes | BREMBO 280 mm Disc, solid uniform expansion rotor, floating, single piston caliper |
| ABS | ABS, C-ABS |
Dimension & Weights
| Overall Length | 2240.2 mm / 88.2 inches |
| Overall Width | 896.6 mm / 35.3 inches |
| Seat Height | 772.16 mm / 30.4 inches 746.76 mm / 29.4 inches – with Adaptive Ride Height (lowers seat height at stops and raises at speed) (laden weight with 81.6 kg / 180 lb operator) |
| Wheelbase | 1570 mm / 61.8 inches |
| Ground Clearance | 170.1 mm / 6.7 inches |
| Fuel Tank Capacity | 21.2 L / 5.6 US gallons |
| Wet (kerb/curb) Weight | 245.8 kg / 542 lbs |
Infotainment
| Display | 6.8″ Color TFT |
| Headset Support | Bluetooth® wireless |
| Language Support | 24 languages including Arabic, Chinese (Simplified/Traditional), English, French, German, Japanese, Spanish, and more |
| Hands-Free Calling | Standard via Bluetooth® |
| Voice Control | Phone functions: Device-dependent |
| Intercom System | Bluetooth headset function only |
| Vehicle Diagnostics | • TPMS |
| Text-to-Speech | Device-dependent language support |
| USB Port | USB-C (5V/3A) for: |
| Bluetooth Audio | Phone calls & media playback supported |
Rider Safety Enhancements
- Anti Lock Braking System (ABS)
- ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
- Electronic Linked Braking (ELB)
- This feature electronically applies braking effort to both wheels when the rider applies the front brake lever and, on some models when the rider applies the rear brake pedal. ELB can help many riders achieve better braking performance. It boosts braking power when needed while minimizing or stopping the linking for lighter braking or at lower speeds.
- Traction Control System (TCS)
- The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence
- Drag-Torque Slip Control System (DSCS)
- DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
- Vehicle Hold Control (VHC)
- With Vehicle Hold Control (VHC), your bike’s not rolling anywhere until you’re ready to go. Perfect for hill starts or ramps, VHC keeps the brakes locked after you let go, giving you a smooth, confident launch. Just give the brake lever or pedal a quick squeeze at a stop, and VHC has you covered until you’re ready to roll. Heads up: this isn’t a parking brake replacement, but it sure makes those uphill take-offs a breeze.
- Tire Pressure Monitoring System (TPMS)
- TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
- Wheel Lift Mitigation
- A system that helps keep both wheels grounded during intense riding. It has two functions: front wheel lift mitigation manages torque to prevent the front wheel from lifting during acceleration, while rear wheel lift mitigation controls brake pressure to keep the rear wheel down during hard braking, helping to ensure a stable and controlled ride.
- Cornering Enhanced Anti-Lock Brakes Systems (C-ABS)
- C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
- Cornering Electronic Linked Braking (C-ELB)
- C-ELB takes into account the motorcycle lean angle or Trike lateral acceleration. C-ELB will alter the proportioning of brake pressure between the front and rear brakes when braking while cornering in an attempt to improve the ability of the bike to maintain the rider’s intended path.
- Cornering Enhanced Traction Control System (C-TCS)
- C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
- Cornering Drag-Torque Slip Control System (C-DSCS)
- On bikes equipped with C-DSCS, the system helps keep the rear wheel from slipping or locking up when you quickly downshift or let off the throttle, especially on wet or slippery roads. When turning, it can adjust based on how much a two-wheel bike is leaning or the side-to-side motion on a Trike.
- Enhanced Lift Mitigation
- Does the same job as regular wheel lift control but with a bit more finesse. It taps into the bike’s Inertial Measurement Unit (IMU) to fine-tune its control. That means more precise control when you need it most.

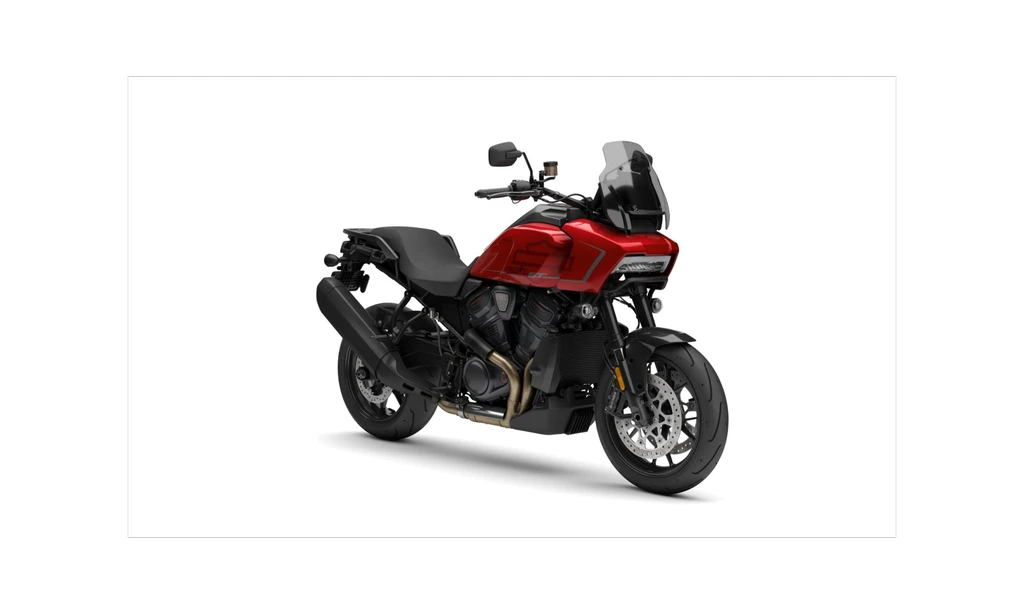

Harley Davidson Pan America 1250 ST (2024) Color Options
- Trim – Black
- Color –
- Billiard Gray
- Vivid Black
- Brilliant Red
