Heritage-inspired tank graphics and an FXRT-style fairing look retro, but the Low Rider ST is a modern performance motorcycle with a new Milwaukee-Eight® 117 High Output V-Twin Engine.
Key Specifications
| Engine Type | 2-cylinder, 4-stroke, V-twin (Milwaukee-Eight® 117 High Output) |
| Engine Capacity | 1917 cc / 117 cubic inches |
| Max Power | 114 HP / 85 kW @ 5000 rpm |
| Max Torque | 173.5 Nm /128 ft-lb @ 4000 rpm |
| Fuel Tank Capacity | 19 L / 5 US gallons |
| Weight (Wet/Kerb) | 323 kg / 712 lbs |
| Seat Height | 685.8 mm / 27 inches (laden weight with 81.6 kg / 180 lb operator) |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | Harley Davidson Low Rider ST |
| Year | 2025 |
Engine
| Engine Type | 2-cylinder, 4-stroke, V-twin (Milwaukee-Eight® 117 High Output) |
| Displacement | 1917 cc / 117 cubic inches |
| Bore x Stroke | 103.5 mm x 114.3 mm 4.075 inches x 4.5 inches |
| Compression Ratio | 10.3 : 1 |
| Number of Cylinders | 2 |
| Max Horsepower | 114 HP / 85 kW @ 5000 rpm |
| Max Torque | 173.5 Nm /128 ft-lb @ 4000 rpm |
| Valve Train | Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters |
| Valves per Cylinder | 4 |
| Fuel-mixture System | Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication System | Pressurized, dry-sump with oil cooler |
| Ignition System | Electronic ignition |
| Fuel | Premium unleaded |
| Exhaust System | 2-into-1; catalyst in header |
Performance
| Acceleration (0-100 km/h, 0-60 mph) | n/a |
| Fuel Consumption | 47 mpg / 20 kmpl |
| Range | ~ 235 miles / 380 kms |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Mechanical, 10 plate wet, assist & conventional |
| Gearbox | 6-Speed Cruise Drive® |
| Primary Drive Ratio | 34:46 |
| Gear Ratios | 1st gear – 9.311 2nd gear – 6.454 3rd gear – 4.793 4th gear – 3.822 5th gear – 3.307 6th gear – 2.79 |
| Final Drive | Belt |
| Traction Control System | TCS |
Electrical & Electronics System
| Battery | 12 V, 17.5 Ah, 315 CCA sealed and maintenance free |
| Alternator/Generator | 46–50 A maximum output |
| Starter | 1.6 kW electric with solenoid shift starter motor engagement |
| Headlight Type | All LED, low beam, high beam and signature position lamp |
| Taillight Type | LED Buffett tail lamp |
| Instrumentation | 4-inch analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication |
| Riding Modes | 3 Ride Modes – Rain, Road, Sport |
| Traction Control System | TCS, C-TCS |
| ABS | ABS, C-ABS |
| Cruise Control | Standard |
Chassis & Suspension
| Frame Type | Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports |
| Front Suspension | Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring |
| Front Suspension Travel | 5 inches / 127 mm |
| Rear Suspension | Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment |
| Rear Suspension Travel | 4.4 inches / 112 mm |
| Rake | 28 |
| Trail | 144.7 mm / 5.7 inches |
| Swingarm | Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer |
Wheels & Brakes
| Wheels | Chrome, Radiate Cast Aluminum / Black, Radiate Cast Aluminum (optional) |
| Front Wheel/Rim Size | 2.5 x 19 inches |
| Front Tire Size | 110/90B19,62H,BW |
| Rear Wheel/Rim Size | 5 x 16 inches |
| Rear Tire Size | 180/70B16,77H,BW |
| Front Brakes | 300 mm Disc, 4-piston fixed front |
| Rear Brakes | 292 mm Disc, 2-piston floating rear |
| ABS | ABS |
Dimension & Weights
| Overall Length | 2360 mm / 92.9 inches |
| Overall Width | 889 mm / 35 inches |
| Overall Height | 1300 mm / 51.2 inches |
| Seat Height | 685.8 mm / 27 inches (laden weight with 81.6 kg / 180 lb operator) |
| Wheelbase | 1615.4 mm / 63.6 inches |
| Ground Clearance | 144.7 mm / 5.7 inches |
| Fuel Tank Capacity | 19 L / 5 US gallons |
| Wet (kerb/curb) Weight | 323 kg / 712 lbs |
Rider Safety Enhancements
- Anti Lock Braking System (ABS)
- ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
- Traction Control System (TCS)
- The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence
- Drag-Torque Slip Control System (DSCS)
- DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
- Tire Pressure Monitoring System (TPMS)
- TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
- Cornering Enhanced Anti-Lock Brakes Systems (C-ABS)
- C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
- Cornering Enhanced Traction Control System (C-TCS)
- C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
- Cornering Drag-Torque Slip Control System (C-DSCS)
- On bikes equipped with C-DSCS, the system helps keep the rear wheel from slipping or locking up when you quickly downshift or let off the throttle, especially on wet or slippery roads. When turning, it can adjust based on how much a two-wheel bike is leaning or the side-to-side motion on a Trike.

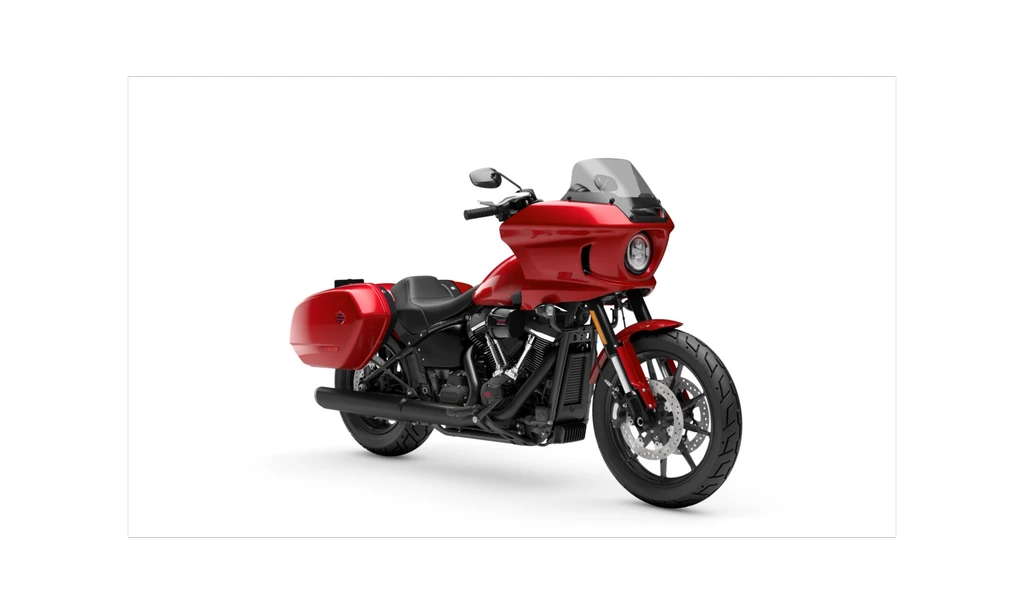

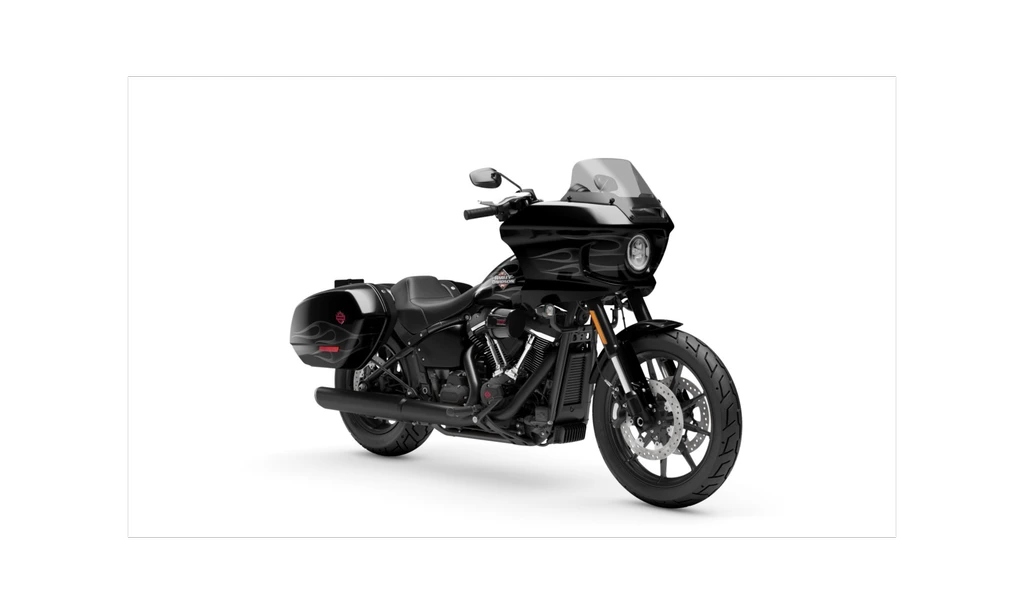

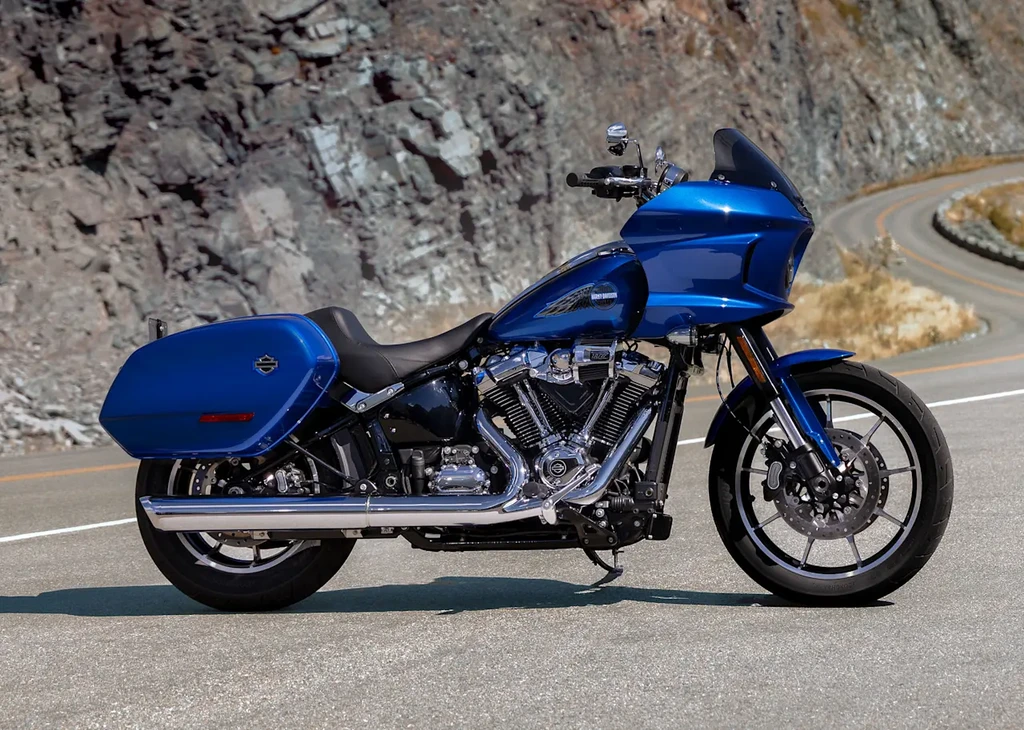

Harley Davidson Low Rider ST (2025) Color Options
- Trim – Chrome, Black
- Color –
- Billiard Gray
- Vivid Black
- Blue Burst (only on the Chrome trim)
- Brilliant Red (only on the Black trim)
- Iron Horse Metallic (only on the Black trim)
- Midnight Firestorm (only on the Black trim)
