Harley Davidson Low Rider ST (2024)

Key Specifications

Engine Type	2-cylinder, 4-stroke, V-twin (Milwaukee-Eight® 117)
Engine Capacity	1917 cc / 117 cubic inches
Max Power	103 HP / 77 kW @ 4750 rpm
Max Torque	170 Nm /125 ft-lb @ 3500 rpm
Fuel Tank Capacity	19 L / 5 US gallons
Weight (Wet/Kerb)	327 kg / 721 lbs
Seat Height	685.8 mm / 27 inches (laden weight with 81.6 kg / 180 lb operator)

*n/a – information not provided by manufacturer

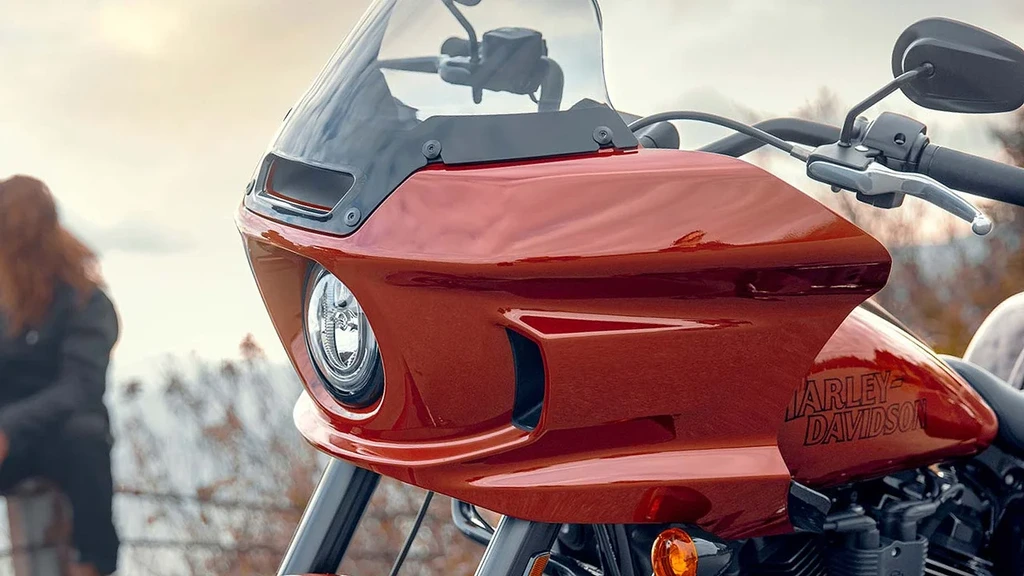

2024-harley-davidson-low-rider-st-throttlecraze.com-2_throttlecraze.com

All Specifications

Make & Model

Model	Harley Davidson Low Rider ST
Year	2024

Engine

Engine Type	2-cylinder, 4-stroke, V-twin (Milwaukee-Eight® 117)
Displacement	1917 cc / 117 cubic inches
Bore x Stroke	103.5 mm x 114.3 mm 4.075 inches x 4.5 inches
Compression Ratio	10.2 : 1
Number of Cylinders	2
Max Horsepower	103 HP / 77 kW @ 4750 rpm
Max Torque	170 Nm /125 ft-lb @ 3500 rpm
Valve Train	Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters
Valves per Cylinder	4
Fuel-mixture System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Ignition System	Electronic ignition
Fuel	Premium unleaded
Exhaust System	2-into-2 offset shotgun; catalyst in muffler

Performance

Acceleration (0-100 km/h, 0-60 mph)	n/a
Fuel Consumption	47 mpg / 20 kmpl
Range	~ 164.5 miles / 264 kms

*n/a – information not provided by manufacturer

Transmission

Clutch	Mechanical, 10 plate wet, assist & conventional
Gearbox	6-Speed Cruise Drive®
Primary Drive Ratio	34:46
Gear Ratios	1st gear – 9.311 2nd gear – 6.454 3rd gear – 4.793 4th gear – 3.822 5th gear – 3.307 6th gear – 2.79
Final Drive	Belt
Traction Control System	TCS

Electrical & Electronics System

Battery	Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F
Alternator/Generator	Three-phase, 42 Amp system (390 Watts @13 Volts, 1000 rpm, 546 Watts max power @ 13 Volts, 2000 rpm)
Starter	1.6 kW electric with solenoid shift starter motor engagement
Headlight Type	All LED, low beam, high beam and signature position lamp
Taillight Type	LED Zeppelin tail lamp
Instrumentation	2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
Traction Control System	TCS
ABS	ABS

Chassis & Suspension

Frame Type	Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports
Front Suspension	Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring
Front Suspension Travel	5 inches / 127 mm
Rear Suspension	Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
Rear Suspension Travel	4.4 inches / 112 mm
Rake	28
Trail	144.7 mm / 5.7 inches
Swingarm	Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer

Wheels & Brakes

Wheels	Dark bronze, Radiate cast aluminum wheel
Front Wheel/Rim Size	2.5 x 19 inches
Front Tire Size	110/90B19,62H,BW
Rear Wheel/Rim Size	5 x 16 inches
Rear Tire Size	180/70B16,77H,BW
Front Brakes	300 mm Disc, 4-piston fixed front
Rear Brakes	292 mm Disc, 2-piston floating rear
ABS	ABS

Dimension & Weights

Overall Length	2364.7 mm / 93.1 inches
Overall Width	870 mm / 34.3 inches
Overall Height	1300 mm / 51.2 inches
Seat Height	685.8 mm / 27 inches (laden weight with 81.6 kg / 180 lb operator)
Wheelbase	1615.4 mm / 63.6 inches
Ground Clearance	150 mm / 5.9 inches
Fuel Tank Capacity	19 L / 5 US gallons
Wet (kerb/curb) Weight	327 kg / 721 lbs

Rider Safety Enhancements

Anti Lock Braking System (ABS)
- ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
Traction Control System (TCS)
- The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence

Harley Davidson Low Rider ST (2024) Color Options

Trim – Black
Color –
- Billiard Gray
- Vivid Black
- Red Rock
- Tobacco Fade

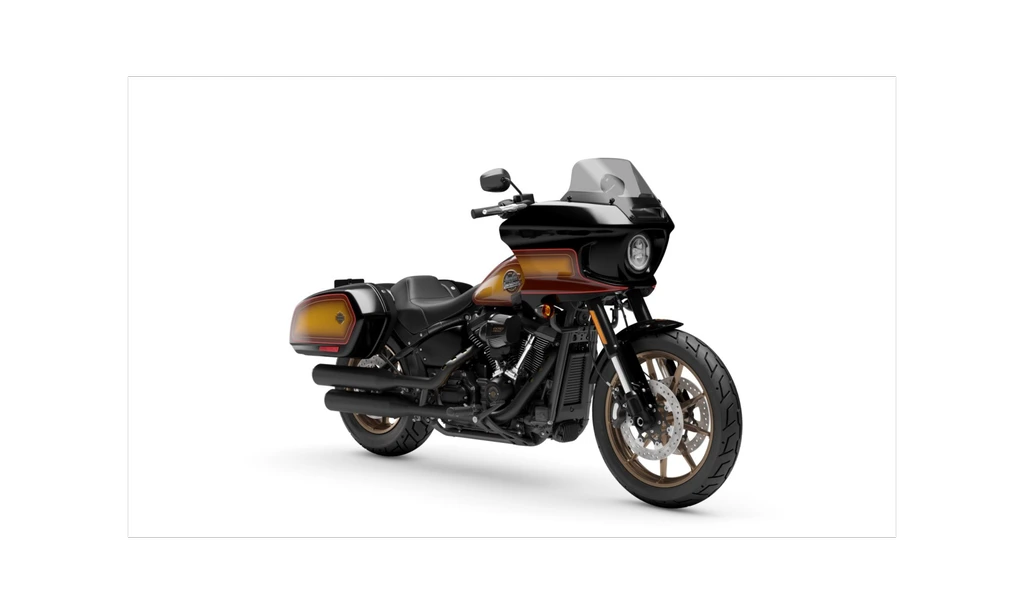

2024-harley-davidson-low-rider-st-throttlecraze.com-3_throttlecraze.com

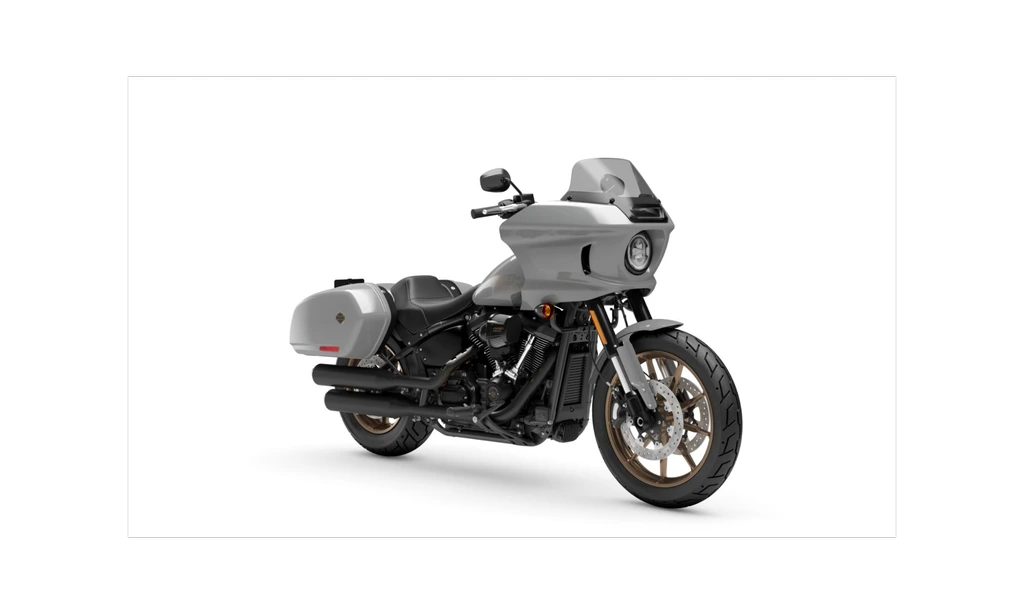

2024-harley-davidson-low-rider-st-throttlecraze.com-4_throttlecraze.com

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
