300 mm Disc, Dual floating rotors, 32 mm, 4-piston fixed caliper
Rear Brakes
270 mm Disc, fixed rotor, floating 36mm piston integrated park brake
ABS
ABS, C-ABS
Dimension & Weights
Overall Length
2616.2 mm / 103 inches
Overall Width
1404.6 mm / 55.3 inches
Seat Height
665.4 mm / 26.2 inches (laden weight with 81.6 kg / 180 lb operator)
Wheelbase
1668.7 mm / 65.7 inches
Ground Clearance
124.4 mm / 4.9 inches
Fuel Tank Capacity
22.7 L / 6 US gallons
Wet (kerb/curb) Weight
513 kg / 1131 lbs
Rider Safety Enhancements
ABS (Anti Lock Braking System)
ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
ELB (Electronic Linked Braking)
This feature electronically applies braking effort to both wheels when the rider applies the front brake lever and, on some models when the rider applies the rear brake pedal. ELB can help many riders achieve better braking performance. It boosts braking power when needed while minimizing or stopping the linking for lighter braking or at lower speeds.
Traction Control System (TCS)
The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence
Drag-Torque Slip Control System (DSCS)
DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
C-ELB (Cornering Electronic Linked Braking)
C-ELB takes into account the motorcycle lean angle or Trike lateral acceleration. C-ELB will alter the proportioning of brake pressure between the front and rear brakes when braking while cornering in an attempt to improve the ability of the bike to maintain the rider’s intended path.
C-TCS (Cornering Enhanced Traction Control System)
C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
Harley Davidson Freewheeler (2024) Color Options
Trim – Black
Color –
Billiard Gray

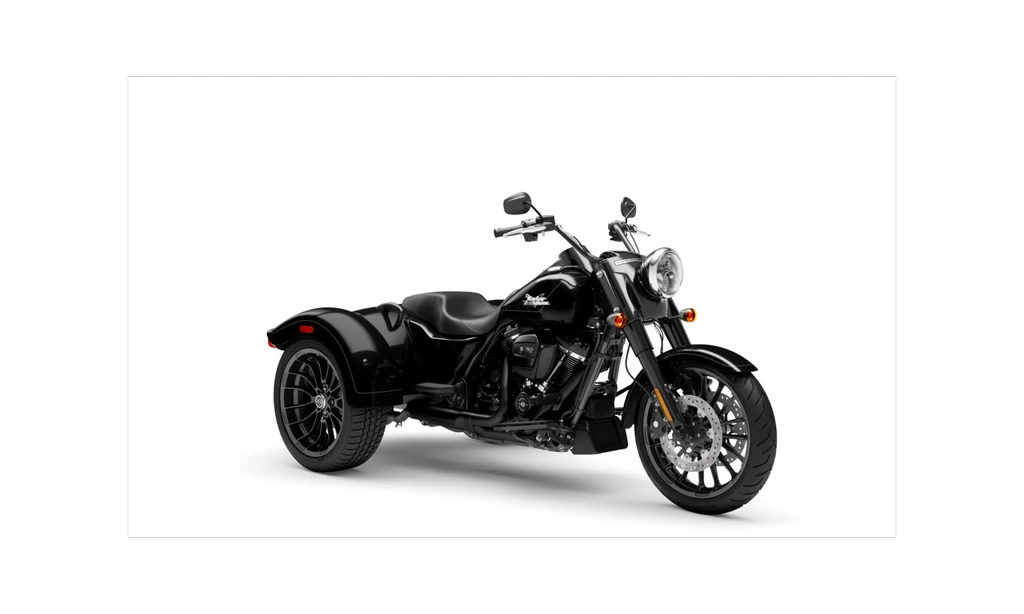

Vivid Black

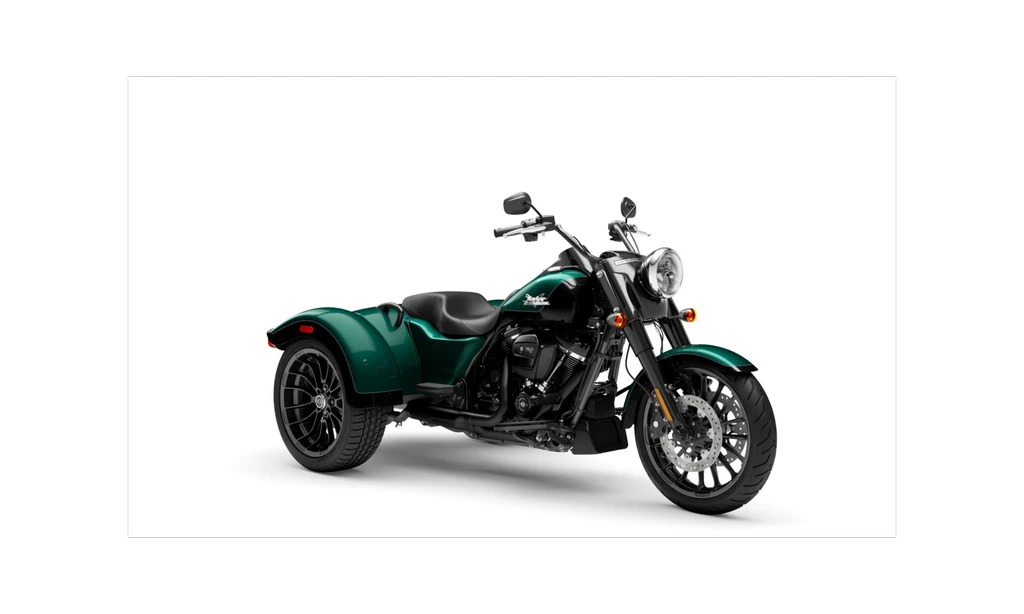

Alpine Green/Vivid Black
