Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F
Alternator/Generator
Three-phase, 48 Amp system (364 Watts @13 Volts, 900 rpm, 624 Watts max power @ 13 Volts, 2000 rpm)
Starter
1.6 kW electric with solenoid shift starter motor engagement
Headlight Type
All LED, low beam, high beam and signature position lamp
Taillight Type
Bullet-style, LED
Instrumentation
5-inch analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
657.8 mm / 25.9 inches (laden weight with 81.6 kg / 180 lb operator)
Wheelbase
1651 mm / 65 inches
Ground Clearance
124.46 mm / 4.9 inches
Fuel Tank Capacity
19 L / 5 US gallons
Wet (kerb/curb) Weight
314.8 kg / 694 lbs
Rider Safety Enhancements
Anti Lock Braking System (ABS)
ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
Traction Control System (TCS)
The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence
Drag-Torque Slip Control System (DSCS)
DSCS is designed to reduce excessive rear-wheel slip and help prevent rear-wheel lock under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt downshift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
Tire Pressure Monitoring System (TPMS)
TPMS alerts the rider through the information display to low or high tire air pressure. Maintaining proper tire air pressure is important both for vehicle performance and tire life.
Cornering Enhanced Anti-Lock Brakes Systems (C-ABS)
C-ABS is a variant of ABS that takes into consideration the lean angle of a two-wheel motorcycle, or the lateral acceleration of a Trike model. The brake pressure required to limit wheel slip when cornering is typically or lower than the pressure required under straight line operation.
Cornering Enhanced Traction Control System (C-TCS)
C-TCS is designed to prevent the rear wheel from excessive spinning under acceleration when going straight or cornering.
Cornering Drag-Torque Slip Control System (C-DSCS)
On bikes equipped with C-DSCS, the system helps keep the rear wheel from slipping or locking up when you quickly downshift or let off the throttle, especially on wet or slippery roads. When turning, it can adjust based on how much a two-wheel bike is leaning or the side-to-side motion on a Trike.

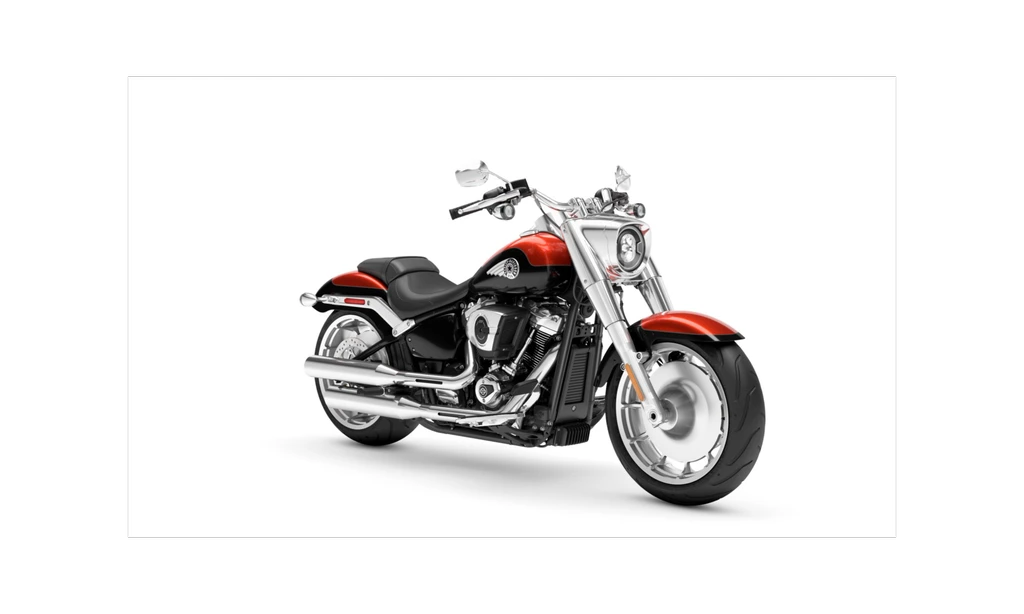

Harley Davidson Fat Boy (2025) Color Options
Trim – Chrome
Color –

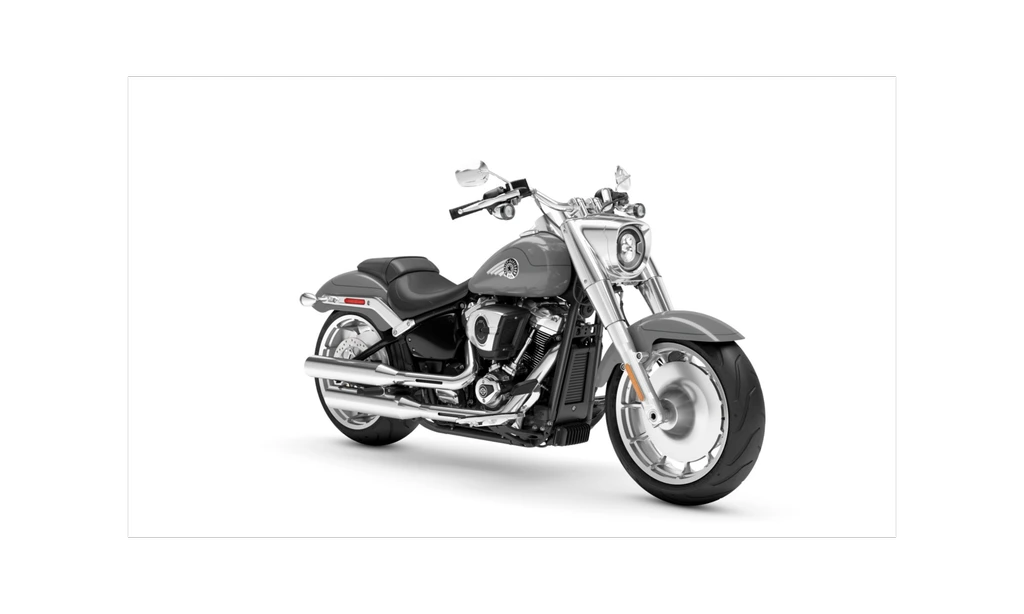

Billiard Gray
Vivid Black
Blue Burst
Whiskey Fire/Vivid Black
