Harley Davidson Breakout (2024)

Key Specifications

Engine Type	2-cylinder, 4-stroke, V-twin (Milwaukee-Eight® 117)
Engine Capacity	1917 cc / 117 cubic inches
Max Power	101 HP / 75 kW @ 4750 rpm
Max Torque	166.8 Nm /123 ft-lb @ 3000 rpm
Fuel Tank Capacity	19 L / 5 US gallons
Weight (Wet/Kerb)	296.2 kg / 653 lbs
Seat Height	650.2 mm / 25.6 inches (laden weight with 81.6 kg / 180 lb operator)

*n/a – information not provided by manufacturer

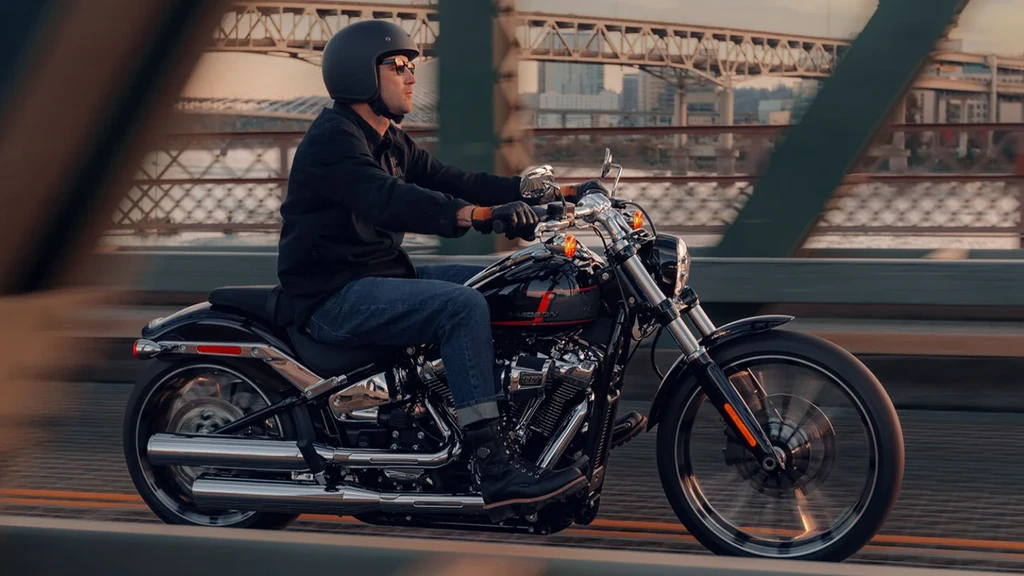

2024-harley-davidson-throttlecraze.com-2_throttlecraze.com

All Specifications

Make & Model

Model	Harley Davidson Breakout
Year	2024

Engine

Engine Type	2-cylinder, 4-stroke, V-twin (Milwaukee-Eight® 117)
Displacement	1917 cc / 117 cubic inches
Bore x Stroke	103.5 mm x 114.3 mm 4.075 inches x 4.5 inches
Compression Ratio	10.2 : 1
Number of Cylinders	2
Max Horsepower	101 HP / 75 kW @ 4750 rpm
Max Torque	166.8 Nm /123 ft-lb @ 3000 rpm
Valve Train	Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters
Valves per Cylinder	4
Fuel-mixture System	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication System	Pressurized, dry-sump with oil cooler
Ignition System	Electronic ignition
Fuel	Premium unleaded
Exhaust System	2-into-2 staggered; catalyst in muffler

Performance

Acceleration (0-100 km/h, 0-60 mph)	n/a
Fuel Consumption	47 mpg / 20 kmpl
Range	~ 235 miles / 378.2 kms

*n/a – information not provided by manufacturer

Transmission

Clutch	Mechanical, 10 plate wet, assist & conventional
Gearbox	6-Speed Cruise Drive®
Primary Drive Ratio	34:46
Gear Ratios	1st gear – 9.311 2nd gear – 6.454 3rd gear – 4.793 4th gear – 3.822 5th gear – 3.307 6th gear – 2.79
Final Drive	Belt
Traction Control System	TCS, C-TCS

Electrical & Electronics System

Battery	Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F
Alternator/Generator	Three-phase, 42 Amp system (390 Watts @13 Volts, 1000 rpm, 546 Watts max power @ 13 Volts, 2000 rpm)
Starter	1.6 kW electric with solenoid shift starter motor engagement
Headlight Type	All LED, low beam, high beam and signature position lamp
Taillight Type	Bullet-style, dual-element incandescent
Instrumentation	2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
Traction Control System	TCS
ABS	ABS

Chassis & Suspension

Frame Type	Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports
Front Suspension	Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Front Suspension Travel	5 inches / 127 mm
Rear Suspension	Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Rear Suspension Travel	3.4 inches / 86.36 mm
Rake	34
Trail	144.7 mm / 5.7 inches
Swingarm	Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer

Wheels & Brakes

Wheels	Gloss black, 26-spoke cast aluminum
Front Tire Size	130/60B21,63H,BW
Rear Tire Size	240/40R18,79V,BW
Front Brakes	300 mm Disc, 4-piston fixed front
Rear Brakes	292 mm Disc, 2-piston floating rear
ABS	ABS

Dimension & Weights

Overall Length	2370.8 mm / 93.3 inches
Overall Width	950 mm / 37.4 inches
Overall Height	1085 mm / 42.7 inches
Seat Height	650.2 mm / 25.6 inches (laden weight with 81.6 kg / 180 lb operator)
Wheelbase	1694.1 mm / 66.7 inches
Ground Clearance	114.3 mm / 4.5 inches
Fuel Tank Capacity	19 L / 5 US gallons
Wet (kerb/curb) Weight	310 kg / 683 lbs

Rider Safety Enhancements

Anti Lock Braking System (ABS)
- ABS is designed to prevent the wheels from locking under braking and helps the rider maintain control when braking in a straight-line, urgent situation.
Traction Control System (TCS)
- The TCS is designed to keep the rear wheel from “spinning out” when the motorcycle is accelerating in a straight line and enhances rider confidence

Harley Davidson Breakout (2024) Color Options

Trim – Chrome
Color –
- Billiard Gray
- Vivid Black
- White Onyx Pearl
- Blue Burst
- Alpine Green

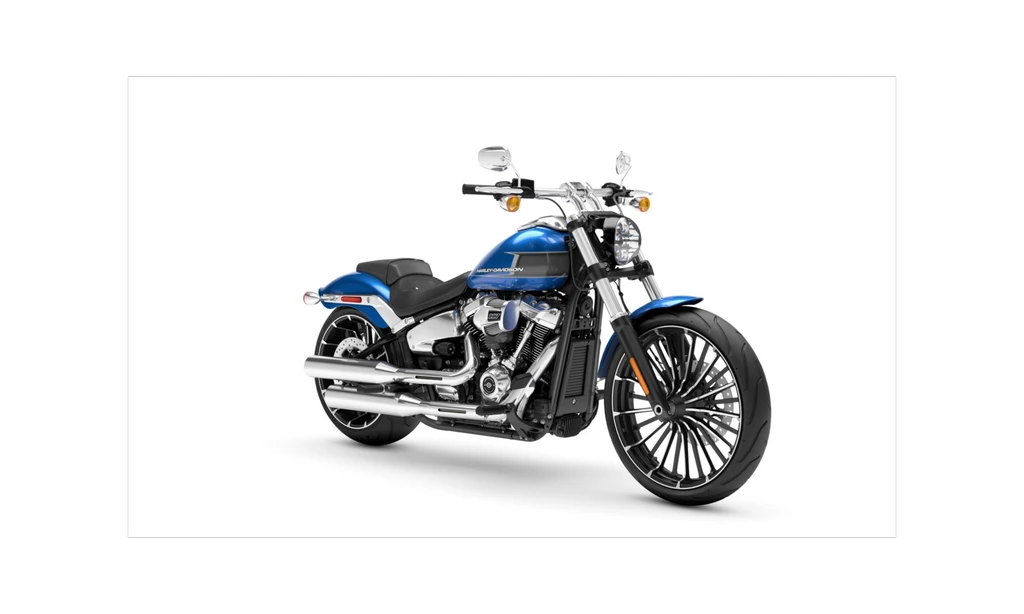

2024-harley-davidson-throttlecraze.com-3_throttlecraze.com

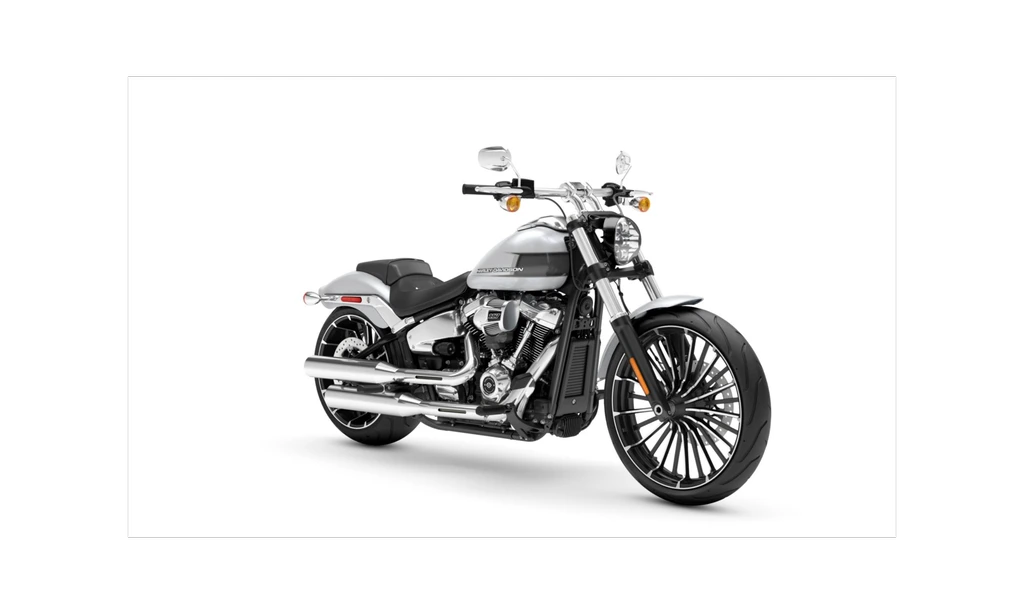

2024-harley-davidson-throttlecraze.com-4_throttlecraze.com
