The new Ducati XDiavel V4 breaks all the rules, injecting pure Ducati spirit into the cruiser world. Its bold yet refined silhouette commands attention, blending muscular design with striking elegance.
At its core, the 168 hp V4 Granturismo engine delivers thrilling performance with smooth power delivery, offering an exciting ride without compromising on comfort.
Key Specifications
| Engine Type | V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled |
| Engine Capacity | 1158 cc |
| Max Power | 168 HP / 124 kW @ 10,750 rpm |
| Max Torque | 126 NM / 93 lb-ft @ 7,500 rpm |
| Top Speed | ~ 273 kmph / 170 mph |
| Fuel Tank Capacity | 20 L / 5.3 US gallons |
| Weight (Wet/Kerb) | ~ 242.5 kg / 534.6 lbs |
| Seat Height | 770 mm / 30.3 inches |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | Ducati XDiavel V4 |
| Year | 2026 |
Engine
| Engine Type | V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled |
| Displacement | 1158 cc |
| Bore x Stroke | 83 mm x 53.5 mm |
| Compression Ratio | 14.0 : 1 |
| Number of Cylinders | 4 |
| Max Horsepower | 168 HP / 124 kW @ 10,750 rpm |
| Max Torque | 126 NM / 93 lb-ft @ 7,500 rpm |
| Valve Train | DOHC |
| Valves per Cylinder | 4 |
| Fuel-mixture System | Bosch electronic fuel injection system, Ø46 mm throttle bodies with ride-by-wire system |
| Cooling System | Water cooling, permanent circulation of coolant by water pump |
| Ignition System | Fully electronic ignition |
| Fuel | Super Unleaded (95-98 RON) |
| Exhaust System | Stainless steel exhaust muffler, with 4 exit pipes |
Performance
| Top Speed | ~ 273 kmph / 170 mph |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Multiplate wet clutch with control and slipper function |
| Gearbox | 6 gears with Ducati Quick Shift (DQS) up/down EVO |
| Primary Drive Ratio | 16/43 |
| Gear Ratios | 1st gear – 13:40 2nd gear – 16:36 3rd gear – 19:34 4th gear – 21:31 5th gear – 23:29 6th gear – 25:27 |
| Final Drive | DID Chain |
| Quick Shifter | Ducati Quick Shift (DQS) up/down EVO |
| Traction Control System | Ducati Traction Control |
| Assist & Slipper Clutch | Hydraulically controlled wet multiplate slipper and self-servo clutch |
Electrical & Electronics System
| Battery | YUASA YT12B-BS-DRY VR.3 valves |
| Alternator/Generator | Mitsuba 14V – 435W |
| Starter | Electric starter 12V – 0.6 kW |
| Headlight Type | LED |
| Taillight Type | LED |
| Instrumentation | 6.9 inch TFT |
| Riding Modes | Sport, Touring, Urban, Wet |
| Traction Control System | Ducati Traction Control |
| ABS | ABS, Cornering ABS |
| Cruise Control | Yes |
Chassis & Suspension
| Frame Type | Monocoque in aluminium alloy |
| Front Suspension | Marzocchi Ø 50 mm Fully adjustable upside-down fork |
| Front Suspension Travel | 120 mm / 4.72 inches |
| Rear Suspension | Sachs monoshock, adjustable in preload, compression and rebound |
| Rear Suspension Travel | 145 mm / 5.7 inches |
| Rake | 29° |
| Trail | 124 mm / 4.9 inches |
| Rear Subframe | Aluminum single-sided swinging arm |
Wheels & Brakes
| Wheels | Light alloy cast rims |
| Front Wheel/Rim Size | 3.50”x17″ |
| Front Tire Size | 120/70-ZR17 |
| Rear Wheel/Rim Size | 8.00”x17″ |
| Rear Tire Size | 240/45-ZR17 |
| Front Brakes | 330 mm disc, BREMBO Stylema M4 30 monobloc with radial mount and 4 pistons, Bosch Cornering ABS |
| Rear Brakes | 265 mm disc, BREMBO floating calliper with 2 pistons [ABS Cornering]. |
| ABS | ABS, Cornering ABS |
Dimension & Weights
| Overall Length | 2298 mm / 90.47 inches |
| Overall Width | 1020 mm / 40.15 inches |
| Overall Height | 1270 mm / 50 inches |
| Seat Height | 770 mm / 30.3 inches |
| Wheelbase | 1620 mm / 63.77 inches |
| Ground Clearance | 109.8 mm / 4.32 inches |
| Fuel Tank Capacity | 20 L / 5.3 US gallons |
| Wet (kerb/curb) Weight | ~ 242.5 kg / 534.6 lbs |
| Dry Weight | ~ 229 kg / 504.8 lbs |
| Max Load Capacity | 455 kg / 1003 lbs |
Riding Aids
- Riding Modes (Sport, Touring, Wet, Urban)
- Power Modes (High, Medium, Low)
- Cornering ABS
- Ducati Traction Control
- Ducati Wheelie Control (DWC)
- Ducati QuickShifter (up/Down)
- Ducati Power Launch
- Cruise Control
Ducati XDiavel V4 (2026 – ) Color Options

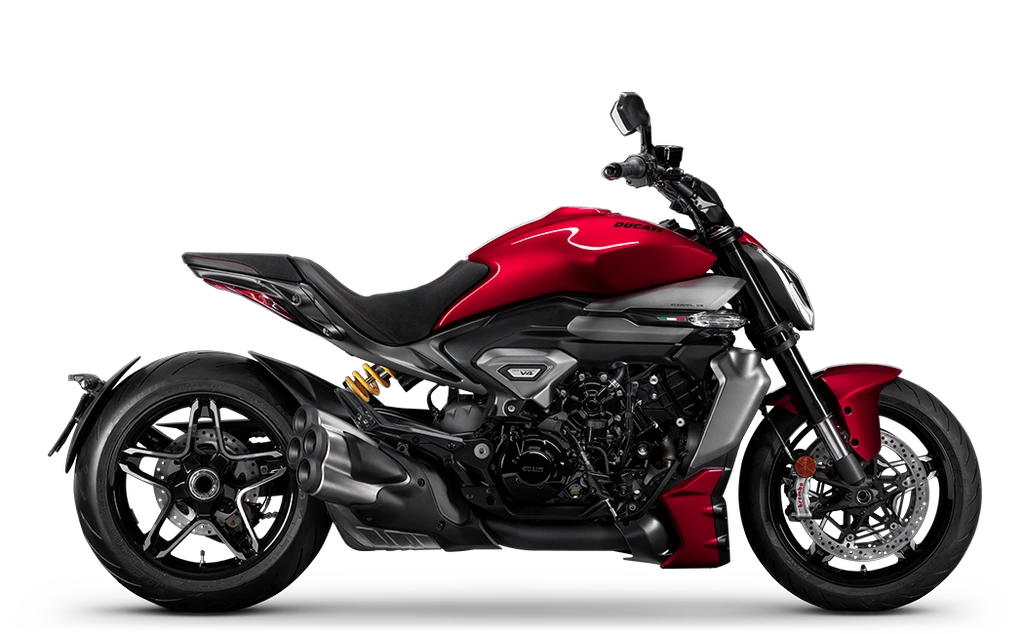

- Burning Red

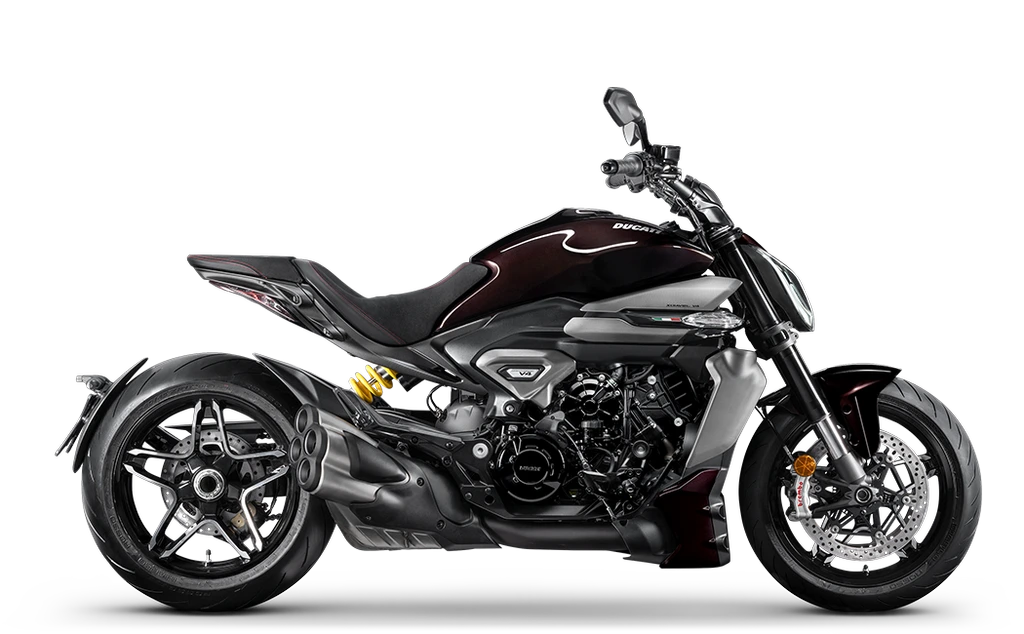

- Black Lava
