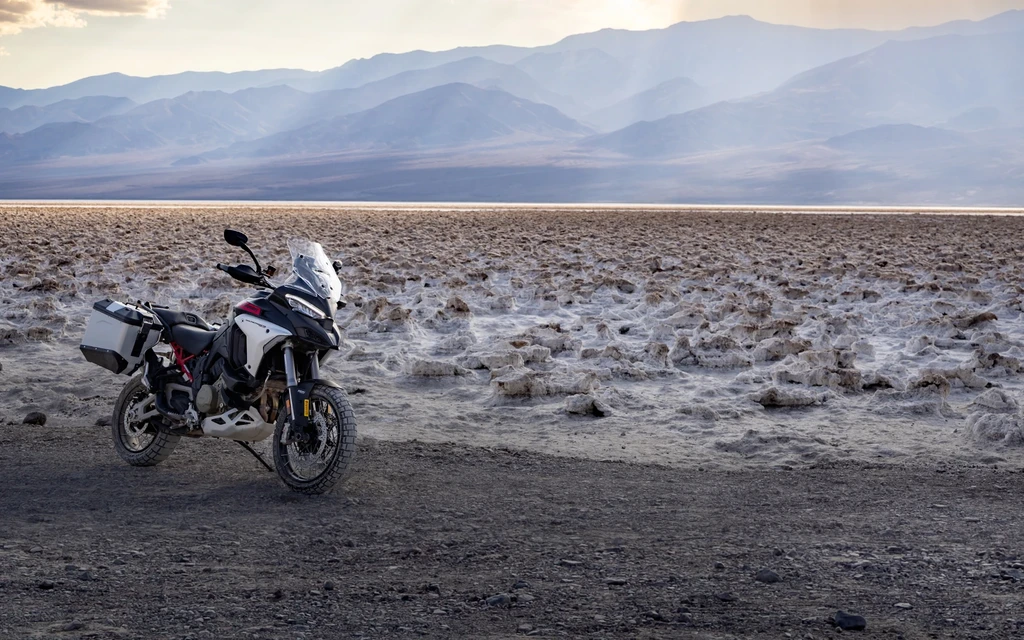

The Multistrada V4 Rally is the ideal travel companion in any situation, as easy and intuitive in the urban jungle as it is on more intrepid routes. High-performance, sturdy, and reliable with its V4 Granturismo engine and extended service intervals, it will carry you wherever your sense of adventure leads.
Key Specifications
| Engine Type | Ducati V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, twin pulse firing order, semi dry sump, liquid cooled |
| Engine Capacity | 1158 cc |
| Max Power | 170 HP / 125 kW @ 10,750 rpm |
| Max Torque | 121 NM / 89.2 lb-ft @ 8750 rpm |
| Top Speed | over 230 kmph / 143 mph |
| Fuel Tank Capacity | 30 L / 7.9 US gallons |
| Weight (Wet/Kerb) | 258.2 kg / 570 lbs |
| Seat Height | Standard Seat – 870 mm – 890 mm (34.3 inches – 35 inches) Low Seat A Accessory – 855 mm – 875 mm (33.7 inches – 34.5 inches) Low Seat B Accessory – 825 mm – 845 mm (32.5 inches – 33.3 inches) Low Seat B + Low Suspension Kit – 805 mm – 825 mm (31.7 inches – 32.5 inches) High Seat Accessory – 885 mm – 905 mm (34.9 inches – 35.6 inches) |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | Ducati Multistrada V4 Rally |
| Year | 2024 |
Engine
| Engine Type | Ducati V4 Granturismo, V4 – 90°, 4 valves per cylinder, counter-rotating crankshaft, twin pulse firing order, semi dry sump, liquid cooled |
| Displacement | 1158 cc |
| Bore x Stroke | 83 mm x 53.3 mm |
| Compression Ratio | 14 : 1 |
| Number of Cylinders | 4 |
| Max Horsepower | 170 HP / 125 kW @ 10,750 rpm |
| Max Torque | 121 NM / 89.2 lb-ft @ 8750 rpm |
| Valves per Cylinder | 4 |
| Engine Management System | Continental electronic fuel injection system, Ø 46mm equivalent elliptical throttle bodies with Ride-by-Wire system |
| Ignition System | Fully electronic ignition |
| Fuel | Super Unleaded (95-98 RON) |
| Exhaust System | Stainless steel muffler, double catalytic converter |
Performance
| Top Speed | over 230 kmph / 143 mph |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run |
| Gearbox | 6-speed gearbox with constant mesh gears with Ducati Quick Shift (DQS) up/down EVO |
| Primary Drive Ratio | 16:42 |
| Gear Ratios | 1st gear – 40:13 2nd gear – 36:16 3rd gear – 34:19 4th gear – 31:21 5th gear – 29:23 6th gear – 27:25 |
| Final Drive | DID Chain (525 HV3–KAI) |
| Quick Shifter | Ducati Quick Shift (DQC) Up/Down EVO |
| Traction Control System | Ducati Traction Control |
| Assist & Slipper Clutch | Yes |
Electrical & Electronics System
| Battery | 12V -10Ah |
| Alternator/Generator | DENSO 14V – 560W |
| Starter | DENSO 12 V- 0.6 kW |
| Headlight Type | LED |
| Taillight Type | LED |
| Instrumentation | MAE instrument panel with 6.5″ TFT color display with Ducati Connect and full-map navigation system |
| Riding Modes | Sport, Touring, Urban, Enduro, Wet |
| Traction Control System | Ducati Traction Control |
| ABS | ABS Cornering system |
Chassis & Suspension
| Frame Type | Aluminium Monocoque frame |
| Front Suspension | Marzocchi, Ø50 mm fully adjustable usd fork with internal stroke sensor. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension EVO (DSS) |
| Front Suspension Travel | 200 mm / 7.9 inches |
| Rear Suspension | Cantilever suspension with fully adjustable monoshock. Electronic compression and rebound damping adjustment. Electronic spring pre-load adjustment with Ducati Skyhook Suspension (DSS). Aluminum double-sided swingarm |
| Rear Suspension Travel | 200 mm / 7.9 inches |
| Rake | 24.7° |
| Trail | 105.5 mm / 4.15 inches |
Wheels & Brakes
| Wheels | Spoked Wheel |
| Front Wheel/Rim Size | 3.00×19″ |
| Front Tire Size | 120/70 R19 |
| Rear Wheel/Rim Size | 4.50×17″ |
| Rear Tire Size | 170/60 R17 |
| Front Brakes | 2 x 330 mm semi-floating discs, radially mounted Brembo Stylema 4-piston calipers, 2-pad, radial master cylinder with cornering ABS as standard equipment |
| Rear Brakes | 265 mm disc, 2-piston floating caliper, with cornering ABS as standard equipment |
| ABS | ABS with Cornering ABS |
Dimension & Weights
| Overall Length | 2316 mm / 91.18 inches |
| Overall Width | 1020 mm / 40.16 inches |
| Overall Height | 1557 mm / 61.29 inches (with windscreen at highest position) |
| Seat Height | Standard Seat – 870 mm – 890 mm (34.3 inches – 35 inches) Low Seat A Accessory – 855 mm – 875 mm (33.7 inches – 34.5 inches) Low Seat B Accessory – 825 mm – 845 mm (32.5 inches – 33.3 inches) Low Seat B + Low Suspension Kit – 805 mm – 825 mm (31.7 inches – 32.5 inches) High Seat Accessory – 885 mm – 905 mm (34.9 inches – 35.6 inches) |
| Wheelbase | 1572 mm / 61.9 inches |
| Ground Clearance | 233 mm / 9.17 inches |
| Fuel Tank Capacity | 30 L / 7.9 US gallons |
| Wet (kerb/curb) Weight | 258.2 kg / 570 lbs |
| Dry Weight | 238 kg / 525 lbs |
| Max Load Capacity | 490 kg / 1080.27 lbs |
Riding Aids
- Riding Modes
- Power Modes
- BOSCH Cornering ABS
- Ducati Traction Control (DTC)
- Ducati Wheelie Control (DWC)
- Ducati Quick Shift (DQS) up/down
- Ducati Skyhook Suspension (DSS)
- Engine Brake Control (EBC)
- Blind Spot Detection (BSD)
- Adaptive Cruise Control (ACC)
- Extended Cylinder Deactivation (ECD)
- Vehicle Hold Control (VHC)
- Ducati Cornering Lights (DCL)
Ducati Multistrada V4 Rally (2024) Color Options
- Ducati Red
- Brushed Aluminum & Matte Black
