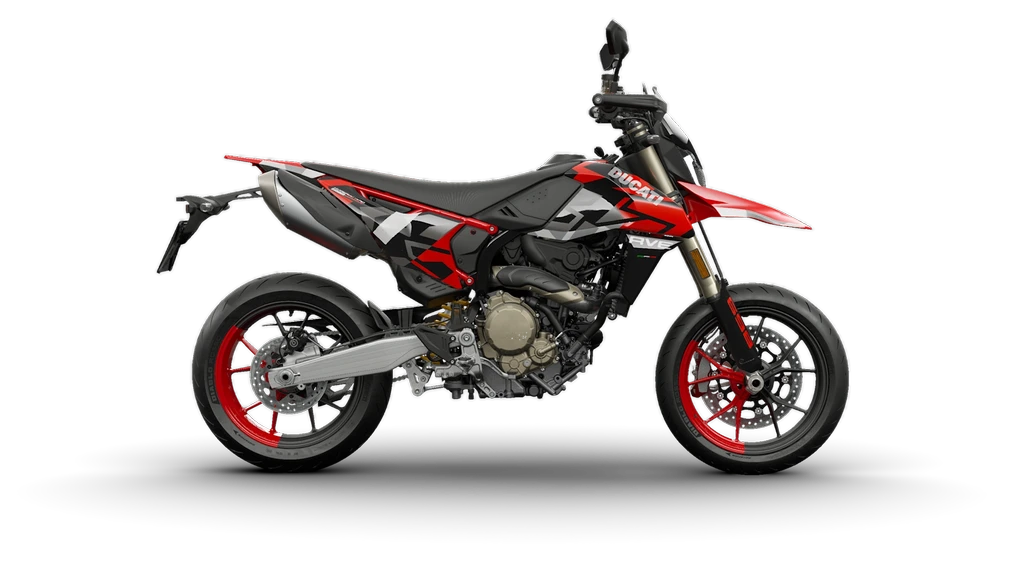

Get ready to ride where fun leads the way. The new Hypermotard 698 Mono is Ducati’s first single-cylinder Supermotard for the street, built with one goal—pure excitement. Light, agile, and stripped to the essentials, it’s a true fun-machine with racing DNA.
Its aggressive, compact design reflects the spirit of competition, while maintaining the sleek finish and attention to detail that define every Ducati.
Key Specifications
| Engine Type | Superquadro Mono, single-cylinder, 4 valves per cylinder, Desmodromic timing, 2-balance countershafts, liquid cooled |
| Engine Capacity | 659 cc |
| Max Power | 77.5 HP / 57 kW @ 9,750 rpm |
| Max Torque | 63 NM / 46.5 lb-ft @ 8000 rpm |
| Top Speed | ~ 220 kmph / 136.7 mph |
| Fuel Tank Capacity | 12 L / 3 US gallons |
| Weight (Wet/Kerb) | ~ 160 kg / 352.7 lbs |
| Seat Height | Standard Seat – 904 mm / 35.6 inches Low Seat Accessory – 889 mm / 35 inches Low Seat + Low Suspension Kit Accessory – 849 mm / 33.4 inches |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | Ducati Hypermotard 698 Mono |
| Year | 2024 – |
Engine
| Engine Type | Superquadro Mono, single-cylinder, 4 valves per cylinder, Desmodromic timing, 2-balance countershafts, liquid cooled |
| Displacement | 659 cc |
| Bore x Stroke | 116 mm x 62.4 mm |
| Compression Ratio | 13.1 : 1 |
| Number of Cylinders | 1 |
| Max Horsepower | 77.5 HP / 57 kW @ 9,750 rpm |
| Max Torque | 63 NM / 46.5 lb-ft @ 8000 rpm |
| Valve Train | DOHC |
| Valves per Cylinder | 4 |
| Fuel-mixture System | Electronic fuel injection system, Ø 62 mm throttle body with full Ride by Wire system |
| Ignition System | Fully electronic ignition |
| Fuel | Super Unleaded (95-98 RON) |
| Exhaust System | 1-2 exhaust system, double aluminum mufflers, catalytic converter and lambda probe |
Performance
| Top Speed | ~ 220 kmph / 136.7 mph |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Multiplate wet clutch with Self-servo and slipper mechanism |
| Gearbox | 6-speed gearbox with constant mesh gears, gear change pedal on left side of motorcycle |
| Primary Drive Ratio | 15/42 |
| Gear Ratios | 1st gear – 13:36 2nd gear – 17:35 3rd gear – 20:32 4th gear – 22:29 5th gear – 21:24 6th gear – 25:26 |
| Final Drive | DID Chain |
| Quick Shifter | Ducati Quick Shift (DQC) Up/Down |
| Traction Control System | Ducati Traction Control |
| Assist & Slipper Clutch | Hydraulically controlled wet multiplate slipper and self-servo clutch |
Electrical & Electronics System
| Battery | HJT7B-FPZ-SCR 4Ah LX |
| Alternator/Generator | DENSO – 240W |
| Starter | MITSUBA SM18 0.6KW |
| Headlight Type | LED |
| Taillight Type | LED |
| Instrumentation | 3.8 inch LCD display with Improved Black Nematic (IBN) technology |
| Riding Modes | Sport, Touring, Urban, Wet |
| Traction Control System | Ducati Traction Control |
| ABS | 4 Levels with Cornering ABS |
Chassis & Suspension
| Frame Type | Steel tubular trellis |
| Front Suspension | Marzocchi Ø 45 mm fully-adjustable hydraulic fork |
| Front Suspension Travel | 215 mm / 8.46 inches |
| Rear Suspension | Fully adjustable |
| Rear Suspension Travel | 240 mm / 9.44 inches |
| Rake | 26.1° |
| Trail | 108 mm / 4.2 inches |
| Rear Subframe | Steel rear subframe |
Wheels & Brakes
| Wheels | Light-alloy rims with 5 Y-shaped spokes |
| Front Wheel/Rim Size | MT 3.50×17″ |
| Front Tire Size | 120/70-17 |
| Rear Wheel/Rim Size | MT 5.00×17″ |
| Rear Tire Size | 160/60-17 |
| Front Brakes | 330 mm disc, BREMBO Floating disc, 4 piston calliper, radial fixed |
| Rear Brakes | 245 mm disc, BREMBO one-piston, floating |
| ABS | ABS 4 levels with Cornering ABS |
Dimension & Weights
| Overall Length | 2165 mm / 85.23 inches |
| Overall Width | 922 mm / 36.29 inches |
| Overall Height | 1360 mm / 53.54 inches |
| Seat Height | Standard Seat – 904 mm / 35.6 inches Low Seat Accessory – 889 mm / 35 inches Low Seat + Low Suspension Kit Accessory – 849 mm / 33.4 inches |
| Wheelbase | 1443 mm / 56.81 inches |
| Ground Clearance | 235 mm / 9.25 inches |
| Fuel Tank Capacity | 12 L / 3 US gallons |
| Wet (kerb/curb) Weight | ~ 160 kg / 352.7 lbs |
| Dry Weight | ~ 151 kg / 333 lbs |
| Max Load Capacity | 355 kg / 782.6 lbs |
Riding Aids
- Riding Modes
- Power Modes
- Cornering ABS
- Ducati Traction Control (DTC)
- Ducati Wheelie Control (DWC)
- Engine Brake Control (EBC)
- Ducati Power Launch (DPL)
- Ducati Quick Shift (DQC)
- Wheelie Assist
Ducati Hypermotard 698 Mono RVE (2024 – ) Color Options
- Graffitti
