CFMoto 500SR VOOM (2025)

500SR VOOM is a powerful middle-weight bike with high-tech features that set new boundaries between modern and sport-classic, a timeless machine ready to bring you into another dimension of fun

Key Specifications

Engine Type	Inline four-cylinder, liquid-cooled, 4-stroke, DOHC
Engine Capacity	499 cc
Max Power	77.7 hp @ 12,500 rpm 58 kW @ 12,500 rpm
Max Torque	49 N.m / 10,000 rpm
Top Speed	136.7 mph / 220 kmph
Fuel Tank Capacity	15.5 L / 4.09 US Gallons
Weight (Wet/Kerb)	194 kg / 427.6 lbs
Seat Height	795 mm / 31.29 inches

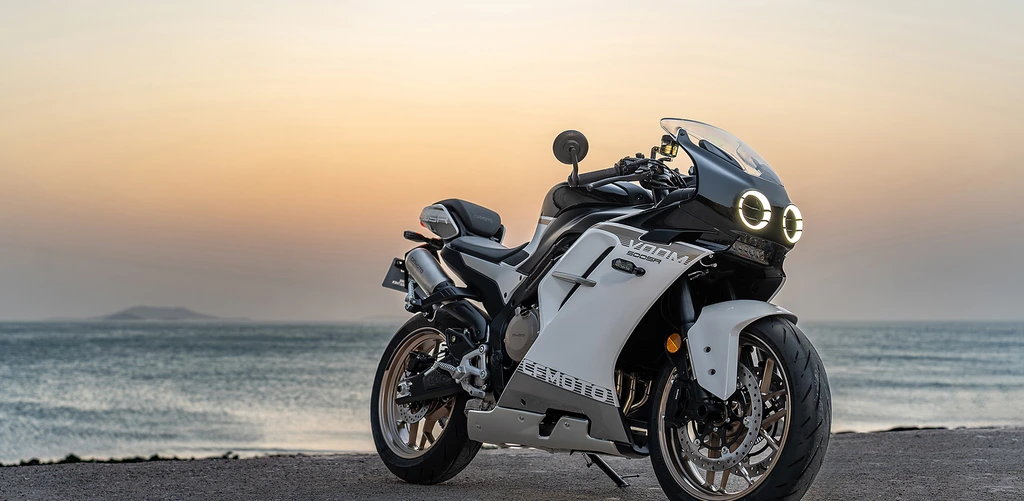

cfmoto-500sr-voom-2025-throttlecraze.com-4_throttlecraze.com

All Specifications

Make & Model

Model	CFMoto 500SR VOOM
Year	2025

Engine

Engine Type	Inline four-cylinder, liquid-cooled, 4-stroke, DOHC
Displacement	499 cc
Bore x Stroke	63 mm × 40.1 mm
Compression Ratio	12:1
Number of Cylinders	4
Max Power	77.7 hp @ 12,500 rpm 58 kW @ 12,500 rpm
Max Torque	49 N.m / 10,000 rpm
Valve Train	DOHC
Engine Management System	EFI system
Lubrication System	Pressure / splash lubrication
Ignition System	ECU Ignition
Fuel	Standard Unleaded
Emissions Compliance	International

Performance

Top Speed	136.7 mph / 220 kmph
Acceleration (0-100 km/h, 0-60 mph)	4.2 s
Fuel Consumption	n/a
Range	n/a

Transmission

Clutch	Wet, multi disc,sliding clutch
Gearbox	6-speed, international standard gear
Primary Drive Ratio	2.088
Gear Ratios	1st – 2.929 2nd – 2.056 3rd – 1.579 4th – 1.333 5th – 1.154 6th – 1.037
Final Drive	Chain
Assist & Slipper Clutch	Slipper Clutch

Electrical & Electronics System

Battery	12 V / 12 Ah
Starter	Electric
Headlight Type	LED
Taillight Type	LED
Instrumentation	5-inch TFT curved display
Traction Control System	Standard
ABS	Dual

Chassis & Suspension

Frame Type	Steel Tube
Front Suspension	Φ41mm USD front forks, preload and rebound adjustable
Front Suspension Travel	120 mm / 4.72 inches
Rear Suspension	Single rear shock, preload and rebound adjustable
Rear Suspension Travel	130 mm / 5.11 inches
Swingarm	Single Swing-arm
Steering Damper	Yes

Wheels & Brakes

Wheels	Aluminum Alloys
Front Tire Size	120/70 R17 (CST S3)
Rear Tire Size	160/60 R17 (CST S3)
Front Brakes	Φ 300mm hydraulic dual disc brake, radial four-piston calipers
Rear Brakes	Φ 220mm hydraulic single disc brake, floating brake disc
ABS	Standard

Dimension & Weights

Overall Length	2010 mm / 79.1 inches
Overall Width	730 mm / 28.74 inches
Overall Height	1115 mm / 43.89 inches
Seat Height	795 mm / 31.29 inches
Wheelbase	1395 mm / 54.92 inches
Ground Clearance	140 mm / 5.51 inches
Fuel Tank Capacity	15.5 L / 4.09 US Gallons
Wet (kerb/curb) Weight	194 kg / 427.6 lbs

CFMoto 500SR VOOM (2025) Colour Options

Zephyr Blue
Nebula White

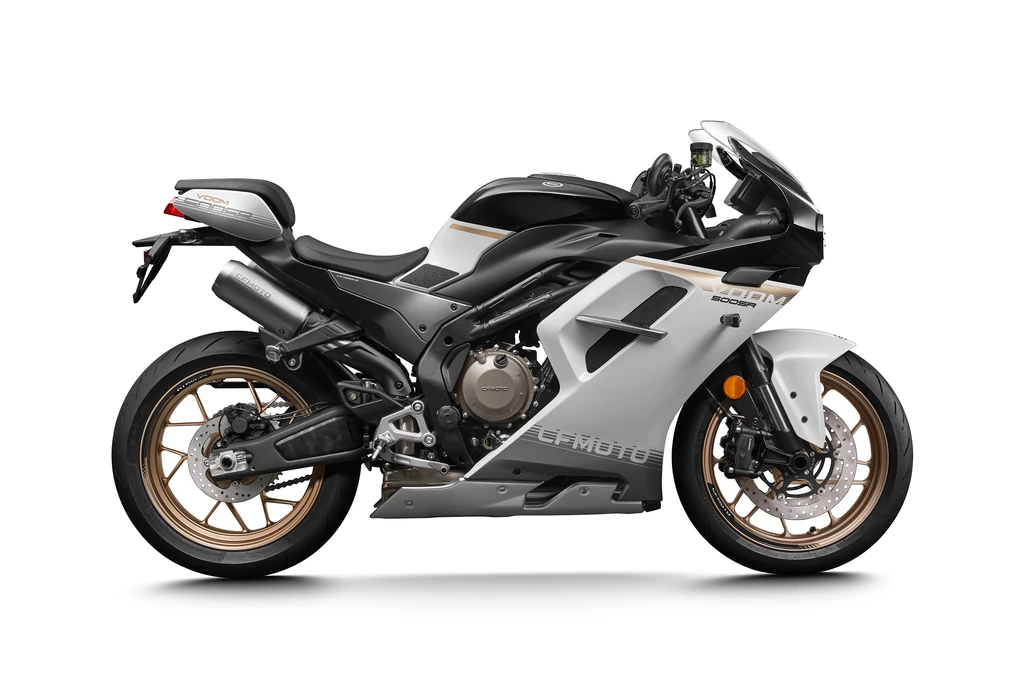

cfmoto-500sr-voom-2025-throttlecraze.com-2_throttlecraze.com

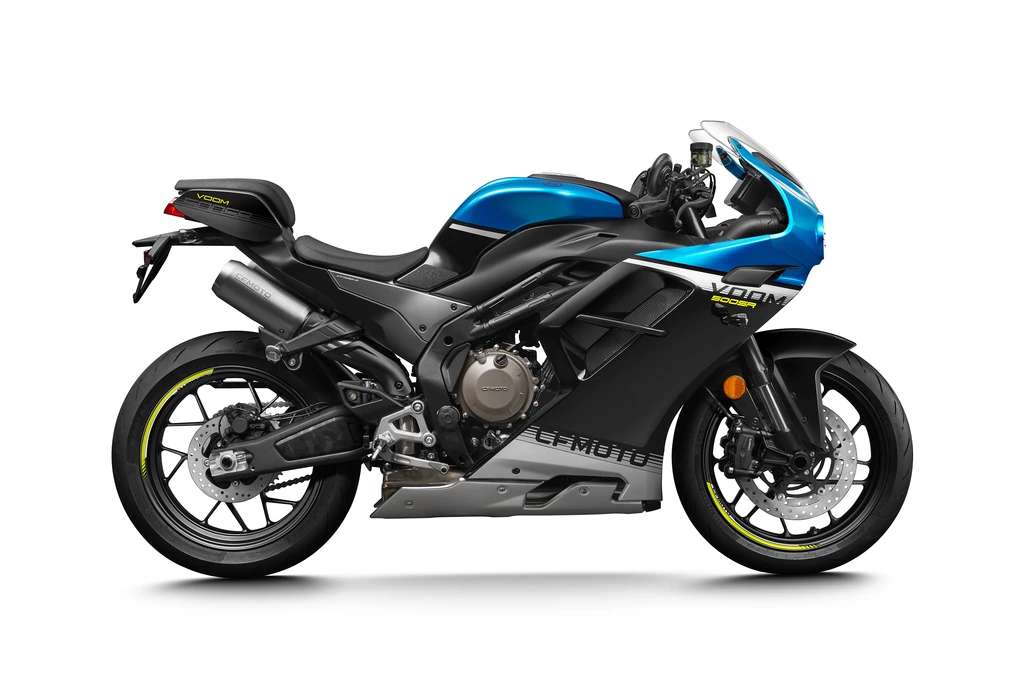

cfmoto-500sr-voom-2025-throttlecraze.com-1_throttlecraze.com
